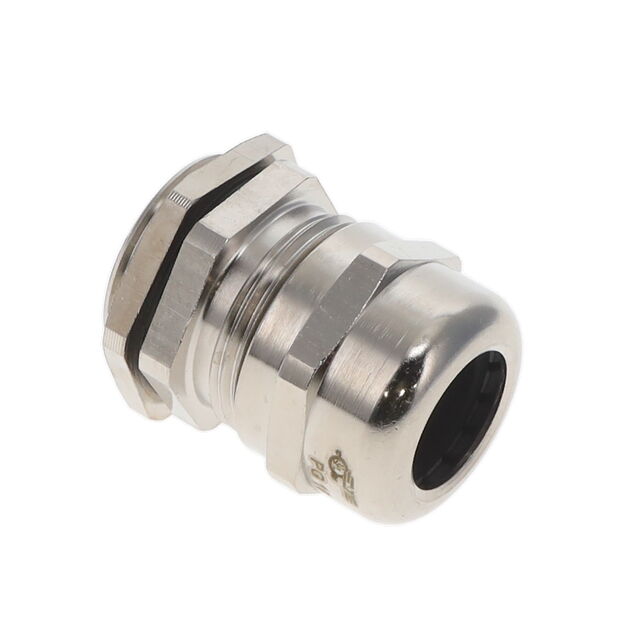

EM-SGL-PG16-MET-C

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 10-14MM PG16 BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 10-14MM PG16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-PG16-MET-C

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Thread Length	0.256 in
Thread Length	6.5 mm
Thread Size	PG16
Type	Cable Gland

Part	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Thread Size	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Thread Length	Thread Length	Ingress Protection
TE Connectivity Raychem Cable Protection EM-SGL-PG16-MET-C	Brass Nickel Plated	14 mm	0.551 "	Cable Gland	PG16	Silver	100 °C	-20 C	0.394 in	10 mm	Locknut Seal	0.256 in	6.5 mm	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG16 Silver
