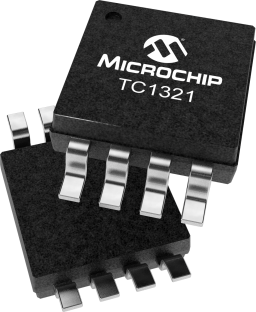

TC1321EUA
ActiveDIGITAL TO ANALOG CONVERTER, 1 CHANNEL, 10 BIT, VOLTAGE, SERIAL I2C, SMBUS, 2.7 V TO 5.5 V, 8 PINS,… MORE
Deep-Dive with AI
Search across all available documentation for this part.
TC1321EUA
ActiveDIGITAL TO ANALOG CONVERTER, 1 CHANNEL, 10 BIT, VOLTAGE, SERIAL I2C, SMBUS, 2.7 V TO 5.5 V, 8 PINS,… MORE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC1321EUA | TC1321 Series |
|---|---|---|
| Architecture | - | Current Steering |
| Data Interface | - | I2C |
| Differential Output | - | False |
| INL/DNL (LSB) | - | 2 - 4 LSB |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Bits | - | 10 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Voltage - Buffered |
| Package / Case | - | 8-SOIC, 8-MSOP, 8-TSSOP |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Reference Type | - | External |
| Settling Time | - | 10 µs |
| Supplier Device Package | - | 8-SOIC, 8-MSOP |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 5.5 V |
| Voltage - Supply, Digital | - | 5.5 V |
| Voltage - Supply, Digital | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | TUBE | 1 | $ 2.42 | |
| 25 | $ 2.02 | |||
| 100 | $ 1.84 | |||
| 1000 | $ 1.78 | |||
| 5000 | $ 1.75 | |||
TC1321 Series
10-Bit Single Output DAC with I2C™
| Part | Data Interface | Architecture | Package / Case | Package / Case [y] | Package / Case [x] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Bits [custom] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Output Type | Settling Time | INL/DNL (LSB) | Differential Output | Reference Type | Package / Case [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC1321EUATR | |||||||||||||||||||||
Microchip Technology TC1321EOA | |||||||||||||||||||||
Microchip Technology TC1321EOA | I2C | Current Steering | 8-SOIC | 3.9 mm | 0.154 in | 85 °C | -40 °C | Surface Mount | 8-SOIC | 2.7 V | 5.5 V | 10 | 5.5 V | 2.7 V | Voltage - Buffered | 10 µs | 2 LSB, 4 LSB | External | |||
Microchip Technology TC1321EOATR | |||||||||||||||||||||
Microchip Technology TC1321EUATR | I2C | Current Steering | 8-MSOP, 8-TSSOP | 85 °C | -40 °C | Surface Mount | 8-MSOP | 2.7 V | 5.5 V | 10 | 5.5 V | 2.7 V | Voltage - Buffered | 10 µs | 2 LSB, 4 LSB | External | 0.118 in | 3 mm | |||
Microchip Technology TC1321EUATR | |||||||||||||||||||||
Microchip Technology TC1321EUA |
Description
General part information
TC1321 Series
The TC1321 is a serially accessible 10-bit voltage output digital-to-analog converter (DAC). The DAC produces an output voltage that ranges from ground to an externally supplied reference voltage. It operates from a single power supply that can range from 2.7V to 5.5V, making it ideal for a wide range of applications. Built into the part is a power-on reset function that ensures that the device starts at a known condition. Communication with the TC1321 is accomplished via a simple 2-wire SMBus/I2C™ compatible serial port with the TC1321 acting as a slave only device. The host can enable the SHDN bit in the CONFIG register to activate the low-power standby mode.
