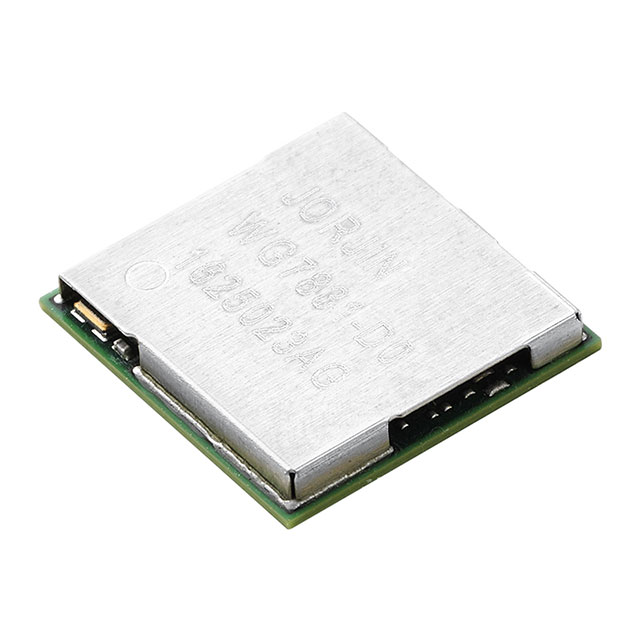

WG7831-D0

Active

Jorjin Technologies Inc.

RF TXRX MOD BLUETOOTH WIFISMD

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

RF TXRX MOD BLUETOOTH WIFISMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD BLUETOOTH WIFISMD

Part	RF Family/Standard	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Data Rate	Protocol	Power - Output	Sensitivity	Mounting Type	Modulation	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Package / Case
Jorjin Technologies Inc. WG7831-D0	Bluetooth, WiFi	1.62 V	1.95 V	Antenna Not Included	54 Mbps	802.11b/g/n, Bluetooth v4.2	17 dBm	-96.3 dBm	Surface Mount	CCK, DSSS, OFDM	2.4 GHz, 5 GHz	85 °C	-40 °C	54 mA	77 mA	285 mA	238 mA	106-LGA Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
