General part information

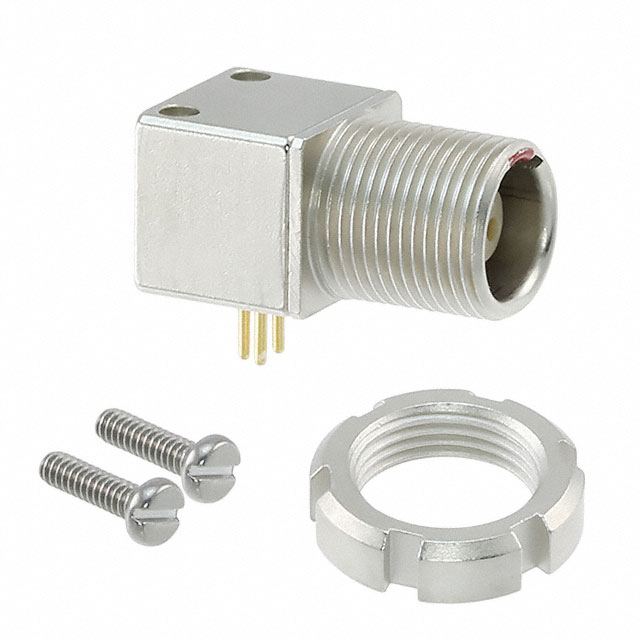

Circular Push Pull Connectors BEND RELIEF
Technical documentation and resources
Parameters and characteristics for this part
| Specification | XRB.00.303.NLN |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 303 |
| Shielding | Shielded |
| Termination | Solder |
Circular Push Pull Connectors BEND RELIEF
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Primary Material | Termination | Ingress Protection | Mounting Type | Contact Material | Connector Type | Contact Finish - Mating | Mounting Feature | Shell Material | Current Rating (Amps) | Shielding | Color | Shell Size - Insert | Orientation | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO XRB.00.303.NLN | -55 °C | 250 °C | Nickel | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Push-Pull | Metal | Solder | IP50 | Panel Mount, Right Angle, Through Hole | Bronze | Receptacle, Female Sockets | Gold | Front Side Nut | Brass | 3 A | Shielded | Silver | 303 | B | UL94 V-0 |
