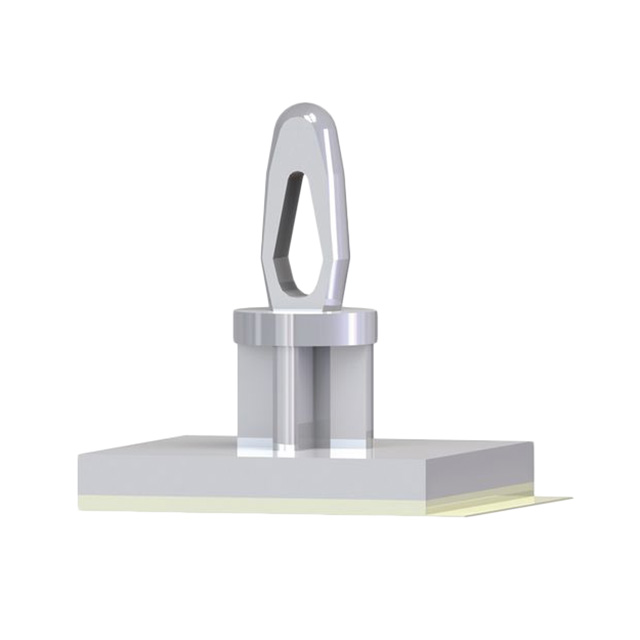

CBSB-9-01A-RT
ActiveEssentra Access Solutions
BRD SPT SNAP FIT ADHESVE 9/16"
Deep-Dive with AI
Search across all available documentation for this part.
CBSB-9-01A-RT
ActiveEssentra Access Solutions
BRD SPT SNAP FIT ADHESVE 9/16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBSB-9-01A-RT |
|---|---|
| Between Board Height | 0.563 in |
| Between Board Height | 14.3 mm |
| Between Board Height | 0.5625 in |
| Holding Type | Snap Fit |
| Length - Overall [x] | 24.51 mm |
| Length - Overall [x] | 0.965 in |
| Material | Nylon |
| Mounting Type | Adhesive |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 5 | $ 0.96 | |||
| 10 | $ 0.90 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.64 | |||
Description
General part information
CBSB-9 Series
Board Support Snap Fit / Adhesive Nylon 0.563" (14.30mm) 9/16"
Documents
Technical documentation and resources
No documents available
