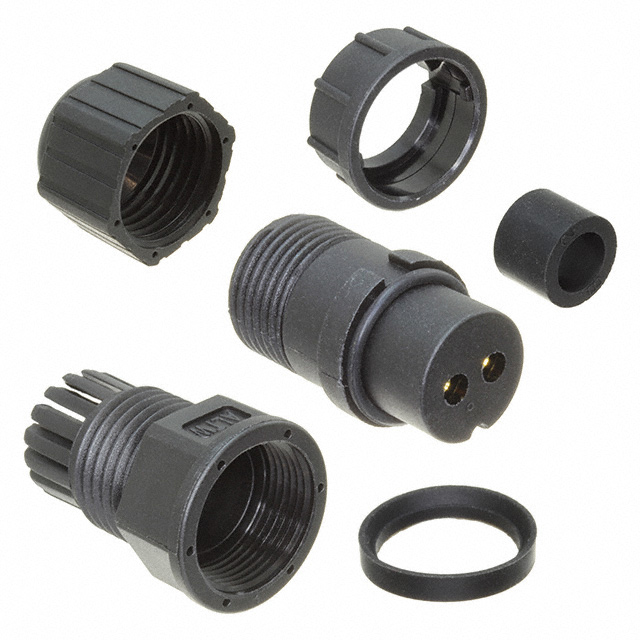

BB-02BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Backshell Material, Plating	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Color	Ingress Protection	Mounting Type	Shell Material	Primary Material	Fastening Type	Shielding	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Number of Positions	Orientation	Insert Material
Amphenol LTW BB-02BFFA-LL7001	Nylon Polyamide (PA)	Backshell Coupling Nut	Copper Alloy	-40 °C	105 ░C	B	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Plastic	Bayonet Lock	Unshielded	Gold	Female Sockets Plug	10 A	2	Keyed
Amphenol LTW BB-02BFFA-LL6001	Nylon Polyamide (PA)	Backshell Coupling Nut	Copper Alloy	-40 °C	105 ░C	B	Black	IP66	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Plastic	Bayonet Lock	Unshielded	Gold	Female Sockets Plug	10 A	2	Keyed	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
