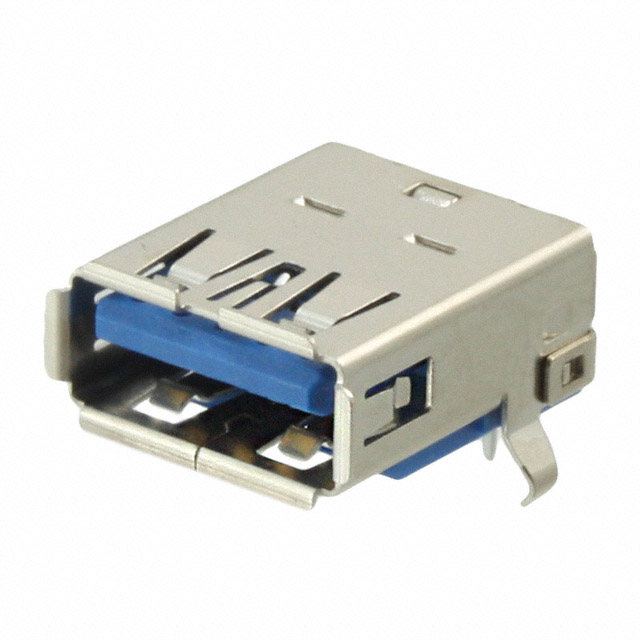

10117835-002LF

Obsolete

Amphenol ICC (FCI)

CONN RCPT USB3.0 TYPEA 9POS R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RCPT USB3.0 TYPEA 9POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10117835-002LF

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Gender	Receptacle
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel, Copper Alloy
Shielding	Unshielded
Termination	Solder
Voltage - Rated	30 VAC

Part	Shell/Shielding Material	Voltage - Rated	Termination	Number of Contacts	Contact Finish	Insulation Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Gender	Mounting Type	Material Flammability Rating	Mounting Feature	Number of Ports	Shielding	Mating Cycles
Amphenol ICC (FCI) 10117835-003LF
Amphenol ICC (FCI) 10117835-002LF	Copper Alloy Steel	30 VAC	Solder	9	Gold	Blue	USB-A (USB TYPE-A)	85 °C	-55 °C	0.25 A 1.8 A	Receptacle	Through Hole Right Angle	UL94 V-0	Horizontal	1	Unshielded
Amphenol ICC (FCI) 10117835-T03LF	Copper Alloy Steel	30 VAC	Solder	9	Gold	Blue	USB-A (USB TYPE-A)	85 °C	-55 °C	0.25 A 1.8 A	Receptacle	Through Hole Right Angle	UL94 V-0	Horizontal	1	Unshielded	3000
Amphenol ICC (FCI) 10117835-T02LF	Copper Alloy Steel	30 VAC	Solder	9	Gold	Blue	USB-A (USB TYPE-A)	85 °C	-55 °C	0.25 A 1.8 A	Receptacle	Through Hole Right Angle	UL94 V-0	Horizontal	1	Unshielded	1500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
