307-033-425-107

Active

EDAC Inc.

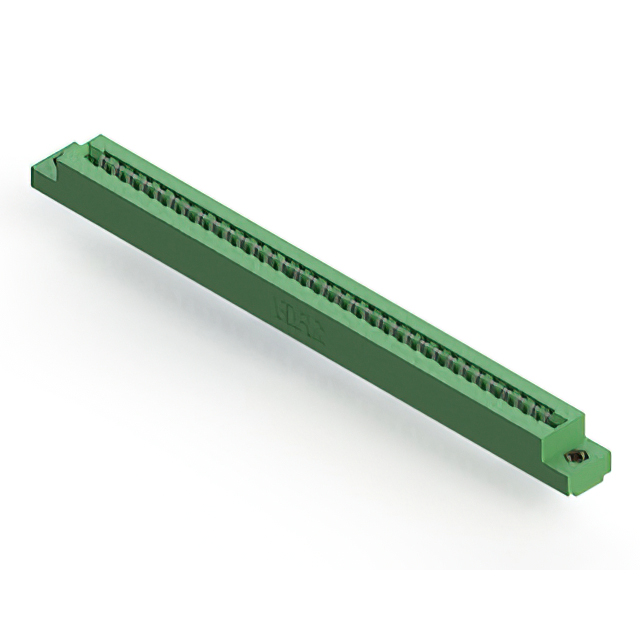

CARD EDGE CONNECTOR, 33 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-033-425-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, 33 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-033-425-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	33
Number of Positions/Bay/Row [custom]	33
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-033 Series

...

Part	Color	Mounting Type	Material - Insulation	Number of Positions	Read Out	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Gender	Contact Type	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Contact Finish	Termination	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features
EDAC Inc. 307-033-553-112	Green	Through Hole Right Angle	Polyester Thermoplastic	66	Dual	1	10 Áin	0.25 Ám	2	Female	Semi Bellows	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Gold	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-459-107	Green	Through Hole Right Angle	Polyester Thermoplastic	33	Single	1			1	Female	Semi Bellows	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge	Tin	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-445-101	Green	Through Hole	Polyester Thermoplastic	33	Single	1			1	Female	Semi Bellows	Copper Alloy				Non Specified - Single Edge	Tin	Wire Wrap	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-457-103	Green	Through Hole Right Angle	Polyester Thermoplastic	66	Dual	1			2	Female	Semi Bellows	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Non Specified - Dual Edge	Tin	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-525-158	Green	Through Hole	Polyester Thermoplastic	33	Single	1	10 Áin	0.25 Ám	1	Female	Semi Bellows	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	Gold	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 307-033-505-178	Green	Through Hole	Polyester Thermoplastic	33	Single	1	10 Áin	0.25 Ám	1	Female	Semi Bellows	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	Gold	Solder Eyelet(s)	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 307-033-453-178	Green	Through Hole Right Angle	Polyester Thermoplastic	66	Dual	1			2	Female	Semi Bellows	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Tin	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 307-033-441-108	Green	Through Hole	Polyester Thermoplastic	66	Dual	1			2	Female	Semi Bellows	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Tin	Wire Wrap	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-425-107	Green	Through Hole	Polyester Thermoplastic	33	Single	1			1	Female	Semi Bellows	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge	Tin	Solder	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-033-505-112	Green	Through Hole	Polyester Thermoplastic	33	Single	1	10 Áin	0.25 Ám	1	Female	Semi Bellows	Copper Alloy	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Single Edge	Gold	Solder Eyelet(s)	0.156 in	3.96 mm	33	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.72

Description

General part information

307-033 Series

33 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
