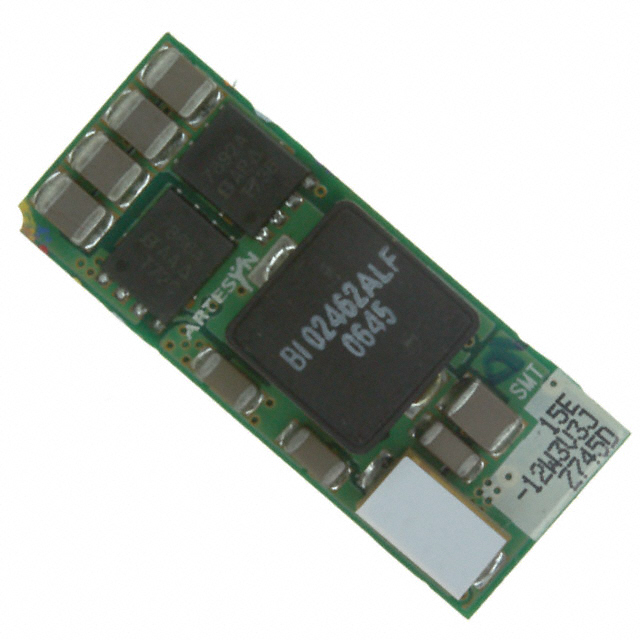

SMT15E-12W3V3J

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.63V 41W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.63V 41W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.8-3.63V 41W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Features
ARTESYN / Advanced Energy SMT15E-12W3V3J	85 °C	-40 °C	15 A	94 %	41 W	0.8 V	3.63 V	1	ITE (Commercial)	14 V	13.5 mm	1.3 "	0.53 in	0.32 "	8.1 mm	33 mm	Non-Isolated PoL Module	10 VDC	6-SMD Module	Surface Mount	OTP, Remote On/Off, SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.63V 15A 10V - 14V Input
