468MP-0.5-5

Active

3M (TC)

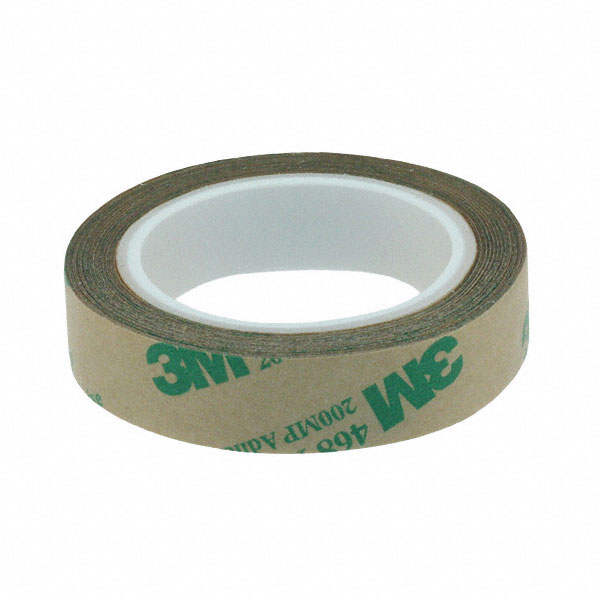

TAPE ADHSV TRNSFR CLR 1/2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

468MP-0.5-5

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	468MP-0.5-5

Adhesive	Acrylic, 200MP
Backing, Carrier	Polycoated Kraft Liner
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range [Max]	149 °C, 300 °F
Temperature Range [Min]	-40 °F
Thickness - Adhesive	0.13 mm
Thickness - Adhesive	0.0051 in
Thickness - Adhesive	5.1 mils
Thickness - Backing, Carrier	0.107 mm
Thickness - Backing, Carrier	0.0042 in
Thickness - Backing, Carrier	4.2 mils
Usage	High Temperature Applications, Attachment
Width	0.5 in
Width	12.7 mm
Width	0.5 in

468MP Series

...

Part	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life Start	Usage	Shelf Life	Length	Length	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Backing, Carrier	Thickness	Thickness	Thickness	Color	Temperature Range [Min]	Temperature Range [Max]	Width	Width	Width	Length [x]	Length [x]	Width
3M (TC) 468MP-1-20	70 °F	21 °C	Date of Manufacture	General Purpose	24 Months	60 '	18.3 m	60 '	0.0052 "	5.2 mils	0.132 mm	25.4 mm	1 in	Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic	Polycoated Kraft Liner
3M (TC) 3M 468MP 1" X 10"-250	70 °F	21 °C	Date of Manufacture		24 Months	10 in	254 mm		0.0052 "	5.2 mils	0.132 mm	25.4 mm	1 in	Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F
3M (TC) 3M 468MP 1" X 9"-250	70 °F	21 °C	Date of Manufacture		24 Months	9 "	228.6 mm		0.0052 "	5.2 mils	0.132 mm	25.4 mm	1 in	Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F
3M (TC) 468MP-0.5-20	70 °F	21 °C	Date of Manufacture	General Purpose	24 Months									Adhesive Transfer				Acrylic	Polycoated Kraft Liner	0.0052 "	5.2 mils	0.132 mm
3M (TC) 3M 468MP 7" X 7.25"-25	70 °F	21 °C	Date of Manufacture		24 Months	7.25 in	184.15 mm		0.0052 "	5.2 mils	0.132 mm	177.8 mm	7 in	Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F
3M (TC) 3M 468MP 0.625" X 60YD	70 °F	21 °C	Date of Manufacture		24 Months	180 ft	55 m	60 yds	0.0052 "	5.2 mils	0.132 mm			Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F	0.625 in	0.63 in	16 mm
3M (TC) 468MP-0.5-1(1000)	70 °F	21 °C	Date of Manufacture		24 Months				0.0052 "	5.2 mils	0.132 mm			Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F	0.5 in	0.5 in	12.7 mm	25.4 mm	1 in
3M (TC) 5-468MP-1.5S	70 °F	21 °C	Date of Manufacture	General Purpose	24 Months	1.5 "	38.1 mm		0.0052 "	5.2 mils	0.132 mm			Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic	Polycoated Kraft Liner								1.5 "	38.1 mm			1 1/2
3M (TC) 3M 468MP 0.75" X 7"-250	70 °F	21 °C	Date of Manufacture		24 Months	7 in	177.8 mm		0.0052 "	5.2 mils	0.132 mm			Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner	0.0094 in	9.4 mils	0.239 mm	Clear	16 °C 60 °F	38 °C 100 °F	19.05 mm	0.75 in	0.75 in
3M (TC) 468MP-0.5-5	70 °F	21 °C	Date of Manufacture	Attachment High Temperature Applications	24 Months	15 ft	4.6 m	5 yd	0.0051 in	5.1 mils	0.13 mm			Adhesive Transfer	0.107 mm	0.0042 in	4.2 mils	Acrylic 200MP	Polycoated Kraft Liner				Clear	-40 °F	149 °C 300 °F	0.5 in	0.5 in	12.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.15
		10	$ 4.74
		25	$ 4.53
		50	$ 4.12
		100	$ 3.91
		250	$ 3.71
		500	$ 3.50
		1000	$ 3.30

Description

General part information

468MP Series

Adhesive Transfer Tape Acrylic, 200MP Adhesive Clear 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
