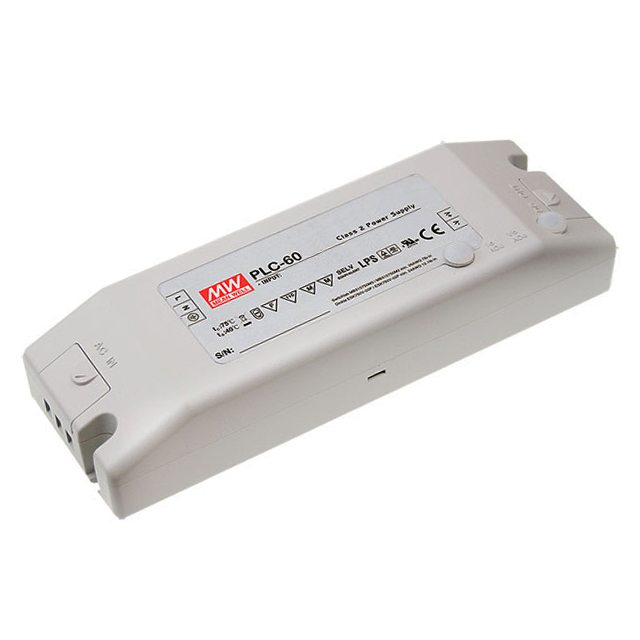

PLC-60-27
MEAN WELL USA Inc.
LED DRVR CC AC/DC 18.9-27V 2.3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLC-60-27
MEAN WELL USA Inc.
LED DRVR CC AC/DC 18.9-27V 2.3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLC-60-27 |
|---|---|
| Approval Agency | PSE, CE, CB, cURus, CCC, TUV |
| Current - Output (Max) [Max] | 2.3 A |
| Efficiency | 88 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 62 W |
| Size / Dimension [x] | 181.5 mm |
| Size / Dimension [x] | 7.15 in |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 27 V |
| Voltage - Output [Min] | 18.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.15 | |
| 10 | $ 45.01 | |||
| 25 | $ 43.11 | |||
Description
General part information
PLC-60 Series
2.3A 18.9 ~ 27V Constant Current LED Driver AC DC Converter Topology 1 Output
