09120062765

Active

HARTING

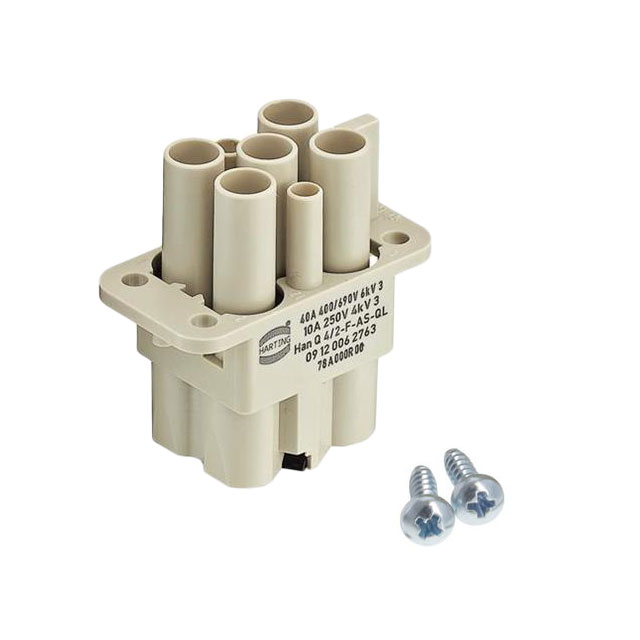

HAN Q 4/2 FEMALE AXIAL SCREW INSERT, W/O QL SIGNAL CONTACTS, (40AMP - 14-10AWG)

Search across all available documentation for this part.

Active

HARTING

HAN Q 4/2 FEMALE AXIAL SCREW INSERT, W/O QL SIGNAL CONTACTS, (40AMP - 14-10AWG)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120062765	09120062 Series

Color	Gray	Gray
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Contents	-	Cable Connector Assembly
Current Rating (Amps)	-	10 A
Gender	Female	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4+Ground	Ground, 4+Ground
Number of Positions	-	2 - 4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	3 A
Style	-	Top Entry
Termination Style	Screw	Crimp, Screw, Push In, Push In with Lock
Voltage Rating	-	25 - 50 V

HANBRIDPANELFEEDTHROUGH CU MALE

Part	Gender	Color	Number of Positions	Number of Positions	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Size	Contact Finish	Contact Material	Contents	Style
HARTING 09120062698	Male
HARTING 09120062611	Male	Gray	2, 4	Ground	UL94 V-0	50 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp	3 A
HARTING 09120062665	Male	Gray		4+Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING 09120062792			2, 4	Ground							Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING 09120062795	Female	Gray	2, 4	Ground	UL94 V-0	25 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Push In
HARTING 09120062791			2, 4	Ground							Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING 09120062701	Female	Gray	2, 4	Ground	UL94 V-0	50 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp
HARTING 09120062798	Female
HARTING 09120062763	Female	Gray	2, 4	Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Push In with Lock, Screw		Silver	Copper Alloy
HARTING 09120062666	Male	Gray	2, 4	Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 4+Ground Position Screw
