09120062611

Active

HARTING

HAN BRID-MALE-C + CU-BUS-MODUL- MALE-C ( ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING

HAN BRID-MALE-C + CU-BUS-MODUL- MALE-C ( ROHS COMPLIANT: NA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

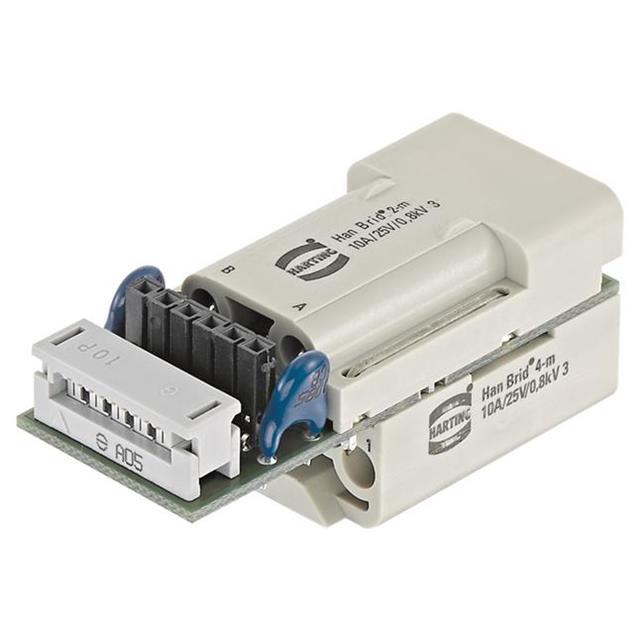

Male Insert Gray 4+2+Ground Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09120062611	09120062 Series

Color	Gray	Gray
Contact Finish	-	Silver
Contact Material	-	Copper Alloy
Contents	-	Cable Connector Assembly
Current Rating (Amps)	10 A	10 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4, 2	2 - 4
Number of Positions	Ground	Ground, 4+Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Style	-	Top Entry
Termination Style	Crimp	Crimp, Screw, Push In, Push In with Lock
Voltage Rating	50 V	25 - 50 V

HANBRIDPANELFEEDTHROUGH CU MALE

Part	Gender	Color	Number of Positions	Number of Positions	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Size	Contact Finish	Contact Material	Contents	Style
HARTING 09120062698	Male
HARTING 09120062611	Male	Gray	2, 4	Ground	UL94 V-0	50 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp	3 A
HARTING 09120062665	Male	Gray		4+Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING 09120062792			2, 4	Ground							Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING 09120062795	Female	Gray	2, 4	Ground	UL94 V-0	25 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Push In
HARTING 09120062791			2, 4	Ground							Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING 09120062701	Female	Gray	2, 4	Ground	UL94 V-0	50 V	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp
HARTING 09120062798	Female
HARTING 09120062763	Female	Gray	2, 4	Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Push In with Lock, Screw		Silver	Copper Alloy
HARTING 09120062666	Male	Gray	2, 4	Ground	UL94 V-0			Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
