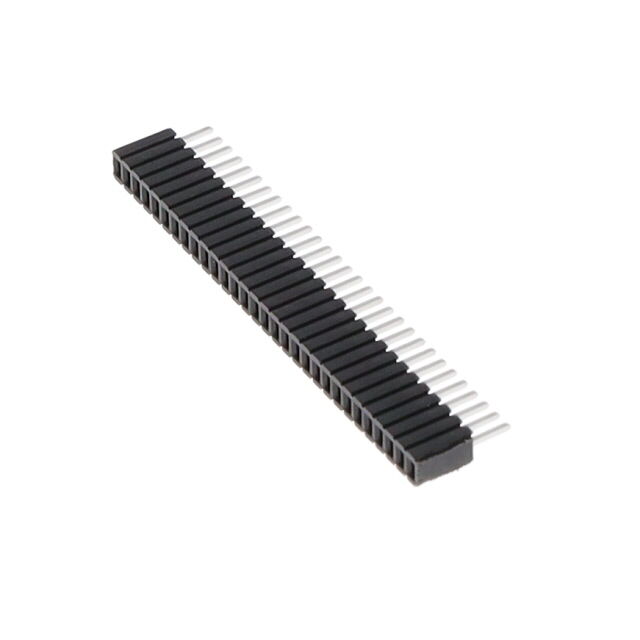

SLM-130-01-T-S

Active

Samtec Inc.

.050 MICRO STRIPS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSLM Datasheet Through-Hole Micro Socket, 0.050" x 0.100" Pitch +1

SLM-130-01-T-S

Active

Samtec Inc.

.050 MICRO STRIPS

Deep-Dive with AI

DocumentsSLM Datasheet Through-Hole Micro Socket, 0.050" x 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-130-01-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

SLM-130 Series

Part	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Number of Positions	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Contact Finish - Mating	Contact Shape	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SLM-130-01-S-S	Black	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	125 °C	Forked	Push-Pull	30	Phosphor Bronze	Receptacle	30 Áin	0.76 Ám	Through Hole	Solder	Gold	Rectangular	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	1	Tin	All
Samtec Inc. SLM-130-01-T-S	Black	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	105 ░C	Forked	Push-Pull	30	Phosphor Bronze	Receptacle			Through Hole	Solder		Rectangular	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	1	Tin	All
Samtec Inc. SLM-130-01-S-D	Black	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	125 °C	Forked	Push-Pull	60	Phosphor Bronze	Receptacle	30 Áin	0.76 Ám	Through Hole	Solder	Gold	Rectangular	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	2	Tin	All	2.54 mm	0.1 in
Samtec Inc. SLM-130-01-T-D	Black	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	105 ░C	Forked	Push-Pull	60	Phosphor Bronze	Receptacle			Through Hole	Solder		Rectangular	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	2	Tin	All	2.54 mm	0.1 in
Samtec Inc. SLM-130-01-F-S	Black	4.57 mm	0.18 "	2.92 mm	0.115 in	-55 °C	125 °C	Forked	Push-Pull	30	Phosphor Bronze	Receptacle	3 µin	0.076 µm	Through Hole	Solder	Gold	Rectangular	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	1	Tin	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.03
		50	$ 3.29
		100	$ 2.79
		500	$ 2.48
		1000	$ 1.87
		2000	$ 1.69
