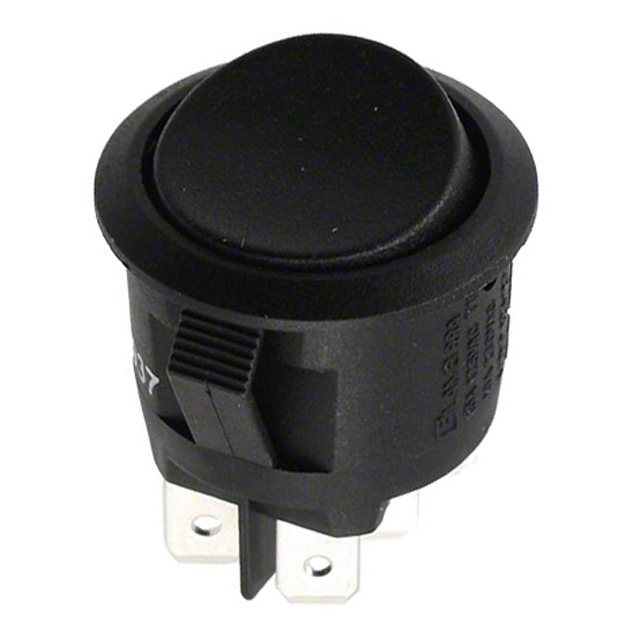

RRA1GC1100
ActiveE-Switch
SWITCH ROCKER DPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RRA1GC1100
ActiveE-Switch
SWITCH ROCKER DPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RRA1GC1100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Approval Agency | UL, cUL |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.56 | |
| 10 | $ 2.21 | |||
| 25 | $ 2.09 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.91 | |||
| 300 | $ 1.78 | |||
| 500 | $ 1.72 | |||
| 1000 | $ 1.65 | |||
Description
General part information
RRA1GC1 Series
Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
