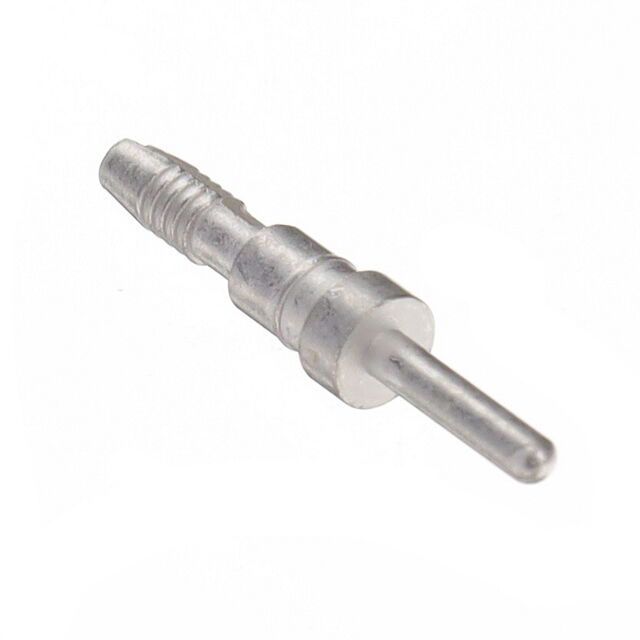

5607-0-01-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PCB PIN PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
5607-0-01-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PCB PIN PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5607-0-01-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 5.13 mm |
| Length - Above Flange [x] | 0.202 in |
| Length - Below Flange [x] | 0.142 in |
| Length - Below Flange [x] | 3.6 mm |
| Mounting Hole Diameter [diameter] | 0.04 in |
| Mounting Hole Diameter [diameter] | 1.02 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.045 in |
| Pin Size - Above Flange [diameter] | 1.14 mm |
| Pin Size - Below Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.76 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| 3000 | $ 0.42 | |||
Description
General part information
5607-0 Series
PC Pin Terminal Connector Through Hole Tin 0.045" (1.14mm) Dia
Documents
Technical documentation and resources
No documents available
