Q-2001F00030.5M

Active

Amphenol Custom Cable

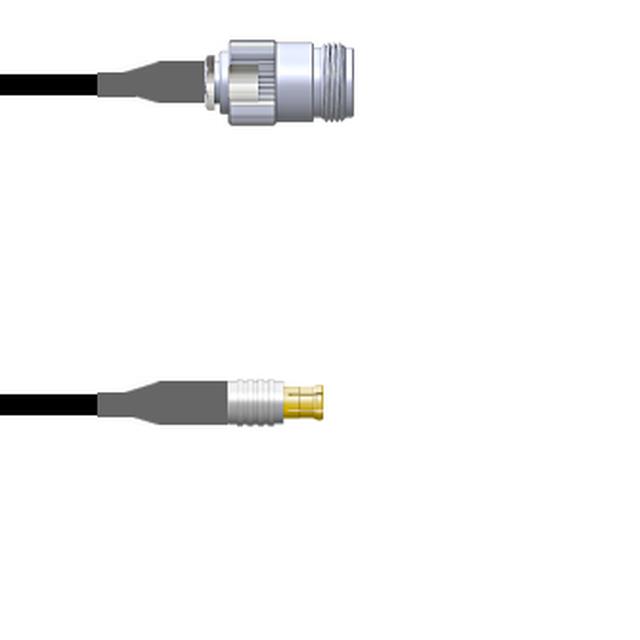

CBL ASSY MCX-NTYPE PL-JK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2001F00030.5M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PL-JK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2001F00030.5M

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2001F0 Series

Part	Length	Length	1st Connector	Color	2nd Connector Mounting Type	2nd Contact Gender	Features	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Cable Type	Style	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2001F0003003i	3 in	76.2 mm	MCX Plug	Black	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-174	MCX to N-Type
Amphenol Custom Cable Q-2001F0003001M	39.4 in	1 m	MCX Plug	Black	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-174	MCX to N-Type	3.3 ft
Amphenol Custom Cable Q-2001F00030.5M	19.69 "	50 cm	MCX Plug	Black	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-174	MCX to N-Type
Amphenol Custom Cable Q-2001F0003.25M			MCX Plug	Black	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-174	MCX to N-Type		9.843 "	250 mm
Amphenol Custom Cable Q-2001F0005048i	48 in	1200 mm	MCX Plug	Copper	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-316	MCX to N-Type	4 ft
Amphenol Custom Cable Q-2001F0005.75M	29.53 "	750 mm	MCX Plug	Copper	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-316	MCX to N-Type
Amphenol Custom Cable Q-2001F0003.75M	29.53 "	750 mm	MCX Plug	Black	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-174	MCX to N-Type
Amphenol Custom Cable Q-2001F0005084i	84 in	2.1 m	MCX Plug	Copper	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-316	MCX to N-Type	7 ft
Amphenol Custom Cable Q-2001F0005009i	9 "	228.6 mm	MCX Plug	Copper	Free Hanging (In-Line)	Female	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	50 Ohms	6000 MHz	RG-316	MCX to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 55.07
		25	$ 54.01
		50	$ 52.94
		100	$ 51.88
		250	$ 50.81

Description

General part information

Q-2001F0 Series

Cable Assembly Coaxial MCX to N-Type RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
