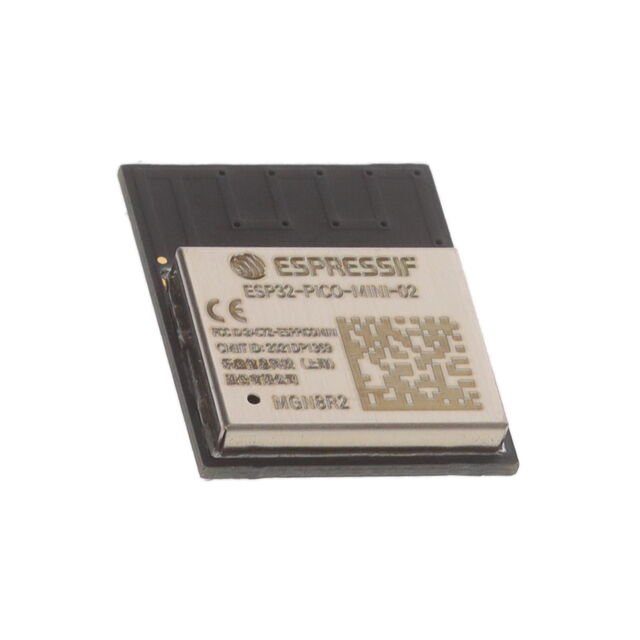

ESP32-PICO-MINI-02-N8R2

Active

Espressif Systems

RF TXRX MOD BT WIFI THCHAS MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESP32-PICO-MINI-02-N8R2

Active

Espressif Systems

RF TXRX MOD BT WIFI THCHAS MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESP32-PICO-MINI-02-N8R2

Antenna Type	PCB Trace
Frequency [Max]	2.484 GHz
Frequency [Min]	2.412 GHz
Memory Size [custom]	8 MB
Memory Size [custom]	2 MB
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	19.5 dBm
Protocol	802.11b/g/n, Class 3, Class 1, Class 2, Bluetooth v4.2 +EDR
RF Family/Standard	WiFi, Bluetooth
Serial Interfaces	SPI, I2C, I2S, UART
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

ESP32 Series

...

Part	Modulation	Power - Output	Mounting Type	Sensitivity	Package / Case	Utilized IC / Part	RF Family/Standard	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving [Min]	Current - Receiving [Max]	Data Rate	Current - Transmitting [Max]	Current - Transmitting [Min]	Protocol	Antenna Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Frequency [Max]	Frequency [Min]	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]	Supplied Contents	For Use With/Related Products	Type
Espressif Systems ESP32-WROOM-32E(M113EH2800PH3Q0)	8DPSK DQPSK	19.5 dBm	Surface Mount	-97 dBm	38-SMD Module	ESP32-D0WD-V3 ESP32-D0WDR2-V3	Bluetooth WiFi	32 Gbit	85 °C	-40 °C	112 mA	118 mA	150 Mbps	239 mA	165 mA	802.11b/g/n Bluetooth v4.2 + EDR Class 1 Class 2 Class 3	PCB Trace	2.4 GHz	3.6 V	3 V	ADC GPIO I2C I2S JTAG PWM SDIO SPI UART
Espressif Systems ESP32-WROVER-B(M213DH2864PH3Q0)		20 dBm	Surface Mount	-98 dBm	38-SMD Module	ESP32-D0WD	Bluetooth WiFi		85 °C	-40 °C			150 Mbps			802.11b/g/n Bluetooth v4.2 + EDR Class 1 Class 2 Class 3	PCB Trace		3.6 V	2.7 V	ADC GPIO I2C I2S PWM SDIO SPI UART	2.5 GHz	2.4 GHz
Espressif Systems ESP32-WROOM-32UE(M113EH3200UH3Q0)	8DPSK DQPSK	19.5 dBm	Surface Mount	-97 dBm	38-SMD Module	ESP32-D0WD-V3 ESP32-D0WDR2-V3	Bluetooth WiFi	32 Gbit	85 °C	-40 °C	112 mA	118 mA	150 Mbps	239 mA	165 mA	802.11b/g/n Bluetooth v4.2 + EDR Class 1 Class 2 Class 3	Antenna Not Included U.FL	2.4 GHz	3.6 V	3 V	ADC GPIO I2C I2S JTAG PWM SDIO SPI UART
Espressif Systems ESP32-WROOM-32U(M113DH6400UH3Q0)	CCK DSSS OFDM	18.5 dBm	Surface Mount	-98 dBm	38-SMD Module	ESP32-D0WD	Bluetooth WiFi	32 Gbit	85 °C	-40 °C			150 Mbps			802.11b/g/n Bluetooth v4.2 + EDR Class 1 Class 2 Class 3	Antenna Not Included U.FL	2.4 GHz	3.6 V	3 V	ADC GPIO I2C I2S JTAG SDIO SPI UART
Espressif Systems ESP32-WROOM-32U-N8	CCK DSSS OFDM	20.5 dBm	Surface Mount	-98 dBm	38-SMD Module	ESP32-D0WD	Bluetooth WiFi		85 °C	-40 °C			150 Mbps			802.11b/g/n Bluetooth v4.2 +EDR Class 1 Class 2 Class 3	Antenna Not Included U.FL		3.6 V	3 V	GPIO I2C I2S PWM SDIO SPI UART	2.5 GHz	2.4 GHz	448 kB	8 MB	536 kB
Espressif Systems ESP32-SOLO-1-N4		20 dBm	Surface Mount	-98 dBm	38-SMD Module	ESP32-S0WD	Bluetooth WiFi	4 MB 448 kB 536 kB	85 °C	-40 °C			150 Mbps			802.11b/g/n Bluetooth v4.2 +EDR Class 1 Class 2 Class 3	Integrated Trace		3.6 V	2.3 V	ADC GPIO I2C I2S PWM SDIO SPI UART	2.5 GHz	2.4 GHz
Espressif Systems ESP32-DEVKITC-VIE																		2.4 GHz									Board(s)	ESP32-WROVER-IE	802.11 b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver
Espressif Systems ESP32-PICO-KIT																		2.4 GHz									Board(s)	ESP32-PICO-D4	802.11 b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver
Espressif Systems ESP32-WROOM-32(M103QH6400PH3Q0)		20 dBm	Surface Mount	-98 dBm	38-SMD Module	ESP32-D0WDQ6	Bluetooth WiFi	4 MB 536 kB	85 °C	-40 °C			150 Mbps			802.11b/g/n Bluetooth v4.2 + EDR Class 1 Class 2 Class 3	Integrated Trace		3.6 V	2.7 V	ADC GPIO I2C I2S PWM SDIO SPI UART	2.484 GHz	2.412 GHz
Espressif Systems ESP32-PICO-MINI-02-N8R2		19.5 dBm	Chassis Mount		Module		Bluetooth WiFi		85 °C	-40 °C						802.11b/g/n Bluetooth v4.2 +EDR Class 1 Class 2 Class 3	PCB Trace		3.6 V	3 V	I2C I2S SPI UART	2.484 GHz	2.412 GHz		8 MB	2 MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.50
	Digi-Reel®	1	$ 3.50
	Tape & Reel (TR)	650	$ 3.50

Description

General part information

ESP32 Series

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Chassis Mount
