E2213HS091

Unknown

Pervasive Displays

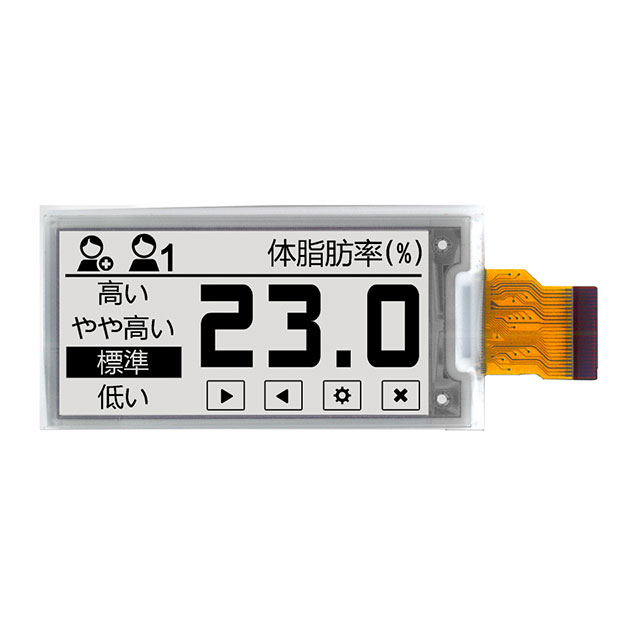

2.13" EPD, PENGUIN, W.ITC

Search across all available documentation for this part.

Unknown

Pervasive Displays

2.13" EPD, PENGUIN, W.ITC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2213HS091	E2213 Series

Background Color	-	White
Backlight	-	Without Backlight
Diagonal Screen Size	53.74 mm	53.74 - 54.1 mm
Diagonal Screen Size	2.1 in	2.1 - 2.13 in
Display Mode	-	Reflective
Display Type	TFT - Color	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.23 mm	0.23 mm
Dot Pitch [y]	0.23 mm	0.23 mm
Dot Pixels [x]	212	212
Dot Pixels [y]	104	104
Graphics Color	White, Black	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	48.55 mm	48.55 mm
Viewing Area [y]	23.71 mm	23.71 - 23.72 mm

2.13" EPD, SPECTRA, W.ITC

Part	Backlight	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [x]	Viewing Area [y]	Graphics Color	Display Type	Display Mode	Interface	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [x]	Dot Pixels [y]	Background Color
Pervasive Displays E2213FS091	Without Backlight	0.23 mm	0.23 mm	48.55 mm	23.72 mm	Black, Red, White	TFT - Electronic Paper Display (EPD)	Reflective	SPI	2.13 in	54.1 mm	212	104
Pervasive Displays E2213PS0E2	Without Backlight	0.23 mm	0.23 mm			Black, White	TFT - Color		SPI	2.13 in	54.1 mm	212	104
Pervasive Displays E2213PS0E1	Without Backlight	0.23 mm	0.23 mm			Black, White	TFT - Color		SPI	2.13 in	54.1 mm	212	104
Pervasive Displays E2213CS091	Without Backlight	0.23 mm	0.23 mm	48.55 mm	23.71 mm	Black	TFT - Electronic Paper Display (EPD)	Reflective	SPI	2.13 in	54.1 mm	212	104	White
Pervasive Displays E2213HS091		0.23 mm	0.23 mm	48.55 mm	23.71 mm	Black, White	TFT - Color		SPI	2.1 in	53.74 mm	212	104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	340	$ 6.48

General part information

Graphic LCD Display Module Black, White TFT - Color SPI 2.1" (53.74mm) 212 x 104
