C5044.41.01

Obsolete

Prysmian Group

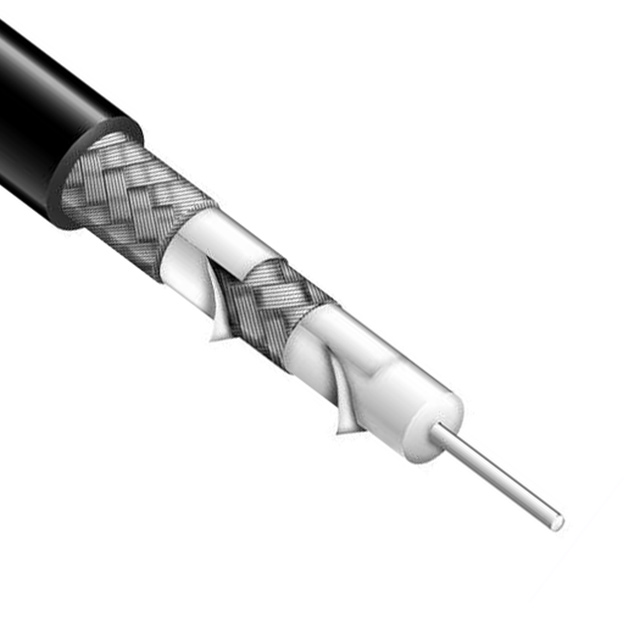

CABLE COAXIAL RG11 14AWG 100'

Search across all available documentation for this part.

Obsolete

Prysmian Group

CABLE COAXIAL RG11 14AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C5044.41.01

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Features	Quad Shield
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Length	15.24 m
Length	50 ft
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	100 %, 40 %, 61 %
Shield Material	Flexfoil®, Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	85
Wire Gauge	14 AWG
Wire Gauge	2.08 mm²

Part	Conductor Strand	Cable Group	Wire Gauge	Wire Gauge	Features	Usage	Impedance	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Shield Material	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Length	Length	Shield Coverage	Length [x]	Length [x]
Prysmian Group C5044.41.01	Solid	RG-11	14 AWG	2.08 mm²	Quad Shield	CATV	75 Ohms	85	0.28 in	7.11 mm	Coaxial	Poly-Vinyl Chloride (PVC)	Flexfoil® Aluminum	Enter Number of Feet in Order Quantity	Black	10.29 mm	0.405 in	Braid Foil	Copper Coated Steel	15.24 m	50 ft	40 % 61 % 100 %	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 14 AWG (2.08mm²) RG-11 100.0' (30.48m) 75 Ohms
