HW-06-09-G-S-410-SM

Active

Samtec Inc.

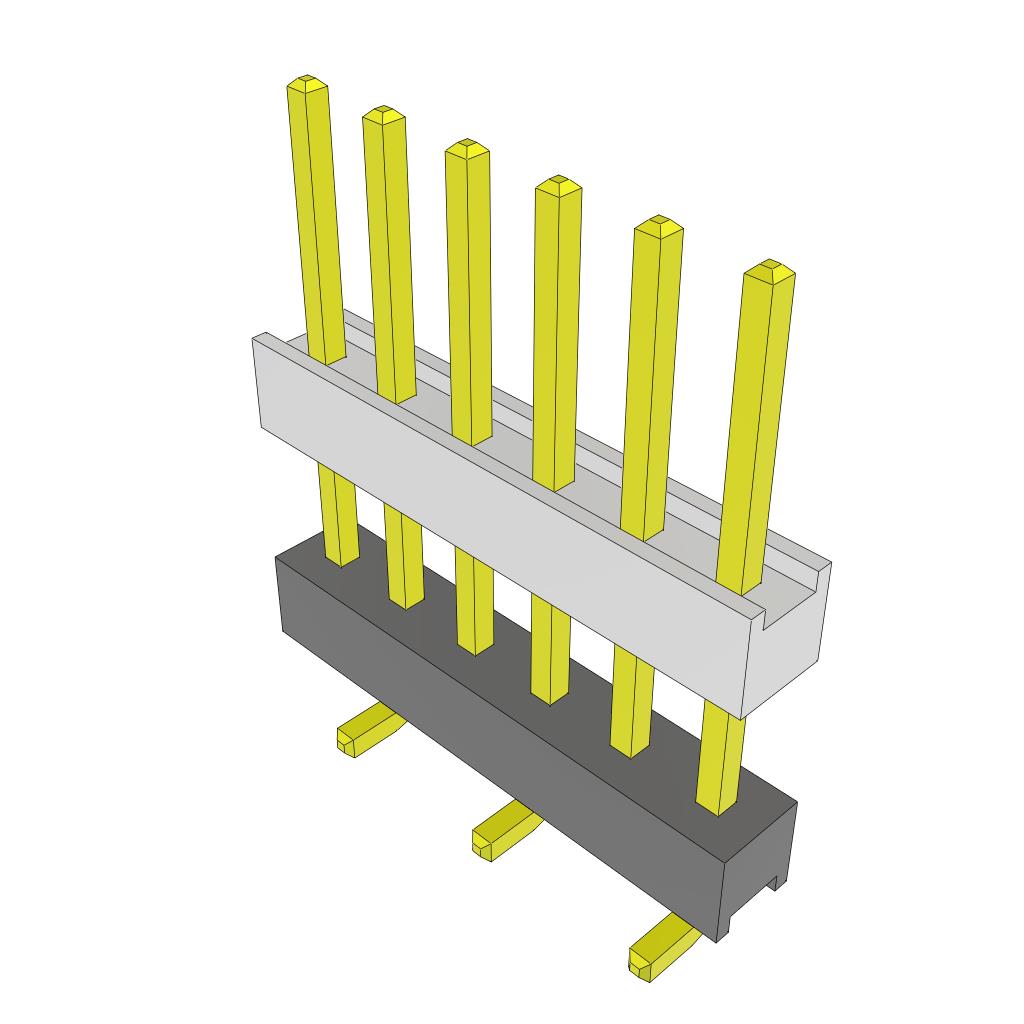

CONN HDR 6POS 0.1 STACK SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-06-09-G-S-410-SM

Active

Samtec Inc.

CONN HDR 6POS 0.1 STACK SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-06-09-G-S-410-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	16.891 mm
Length - Overall Pin [x]	0.665 in
Length - Post (Mating) [x]	6.477 mm
Length - Post (Mating) [x]	0.255 in
Length - Stack Height [z]	0.41 in
Length - Stack Height [z]	10.414 mm
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-06-09 Series

Part	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Color	Length - Tail [x]	Length - Tail [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. HW-06-09-T-T-404-090	Through Hole	0.236 in	5.994 mm	2.54 mm	0.1 in	18	0.1 in	2.54 mm	0.404 in	10.262 mm	Tin	Black	2.286 mm	0.09 in	3	0.73 in	18.542 mm	Solder
Samtec Inc. HW-06-09-T-S-500-SM	Surface Mount	0.165 in	4.191 mm	2.54 mm	0.1 in	6			0.5 in	12.7 mm	Tin	Black			1	0.665 in		Solder	16.891 mm
Samtec Inc. HW-06-09-G-S-410-SM	Surface Mount	0.255 in	6.477 mm	2.54 mm	0.1 in	6					Gold	Black			1	0.665 in		Solder	16.891 mm	0.41 in	10.414 mm	0.25 Ám	10 Áin
Samtec Inc. HW-06-09-F-D-400-130	Through Hole	0.2 in	5.08 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm	0.4 in	10.16 mm	Gold	Black	3.302 mm	0.13 in	2	0.73 in	18.542 mm	Solder				0.076 Ám	3 Áin
Samtec Inc. HW-06-09-T-S-350-SM	Surface Mount	0.315 in	8 mm	2.54 mm	0.1 in	6			0.35 in	8.89 mm	Tin	Black			1	0.665 in		Solder	16.891 mm
Samtec Inc. HW-06-09-F-D-472-SM	Surface Mount	0.193 in	4.902 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm	0.472 in	11.989 mm	Gold	Black			2	0.665 in		Solder	16.891 mm			0.076 Ám	3 Áin
Samtec Inc. HW-06-09-T-D-350-SM	Surface Mount	0.315 in	8 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm	0.35 in	8.89 mm	Tin	Black			2	0.665 in		Solder	16.891 mm
Samtec Inc. HW-06-09-G-D-455-SM	Surface Mount	0.21 in	5.334 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm	0.455 in	11.557 mm	Gold	Black			2	0.665 in		Solder	16.891 mm			0.25 Ám	10 Áin
Samtec Inc. HW-06-09-F-D-435-SM	Surface Mount	0.23 in	5.842 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm			Gold	Black			2	0.665 in		Solder	16.891 mm			0.076 Ám	3 Áin
Samtec Inc. HW-06-09-T-D-555-SM	Surface Mount	0.11 in	2.794 mm	2.54 mm	0.1 in	12	0.1 in	2.54 mm	0.555 in	14.097 mm	Tin	Black			2	0.665 in		Solder	16.891 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.10
		50	$ 1.63
		100	$ 1.32
		500	$ 1.12
		1000	$ 0.93

Description

General part information

HW-06-09 Series

6 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount

Documents

Technical documentation and resources
