929870-01-14-10

Obsolete

3M (TC)

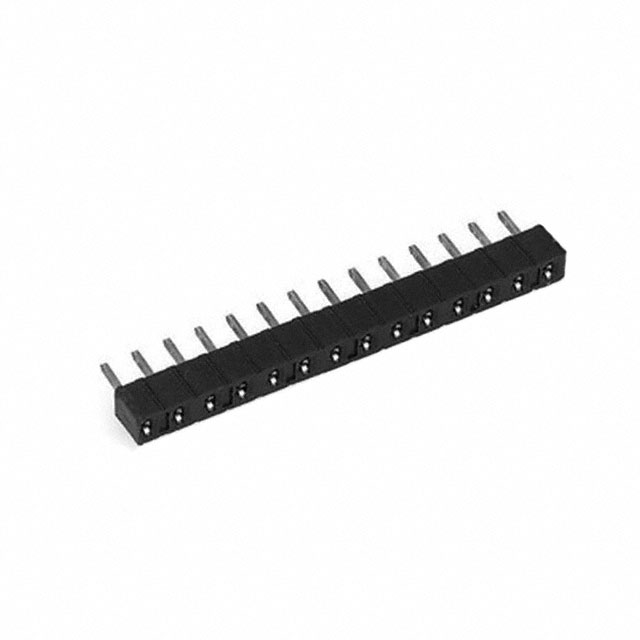

CONN RCPT 14POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929870-01-14-10

Obsolete

3M (TC)

CONN RCPT 14POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929870-01-14-10

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.81 mm
Insulation Height	0.15 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1000 VDC

929870 Series

Part	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Voltage Rating	Contact Type	Number of Rows	Insulation Color	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Shape	Contact Finish - Mating	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type
3M (TC) 929870-01-09-30	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	9	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-10-30	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	10	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-32-RA	Receptacle	0.1 in	2.54 mm	10 çin	0.25 çm	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold		Tin	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-11-10	Receptacle	0.1 in	2.54 mm	10 çin	0.25 çm	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	11	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-14-10	Receptacle	0.1 in	2.54 mm	10 çin	0.25 çm	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	14	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-10-10	Receptacle	0.1 in	2.54 mm	10 çin	0.25 çm	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	10	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-12-30	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	12	Tin-Lead	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-10-RB	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	10	Tin	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-02-RB	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	2	Tin	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole
3M (TC) 929870-01-12-RB	Receptacle	0.1 in	2.54 mm	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	1000 VDC	Forked	1	Black	UL94 V-0	3.18 mm	0.125 in	Copper Alloy	Square	Gold	12	Tin	All	3.81 mm	0.15 in	Solder	-40 °C	105 ░C	Push-Pull	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.60
		10	$ 3.27
		100	$ 2.88

Description

General part information

929870 Series

14 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
