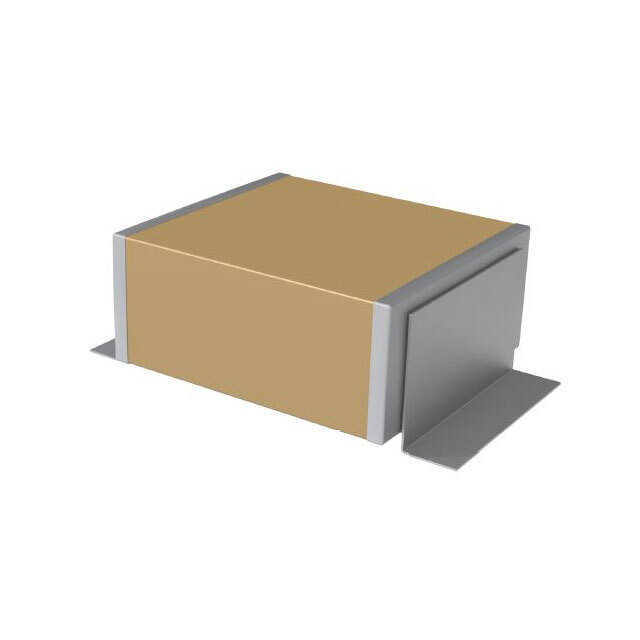

SM36B225K102A

Active

KEMET

CAP CER 2.2UF 1KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 2.2UF 1KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Lead Style	Applications
KEMET SM36B225K102A	MLCC Surface Mount	33 mm	0.598 in	1.299 in	15.2 mm	2.2 µF	5.59 mm	0.22 in	10 %	1 kV	1000 V	X7R	Nonstandard SMD	-55 °C	125 °C	High Voltage	L-Lead	General Purpose
KEMET SM36B565K501B	MLCC Surface Mount	33 mm	0.598 in	1.299 in	15.2 mm	5.6 µF	5.59 mm	0.22 in	10 %		500 V	X7R	Nonstandard SMD	-55 °C	125 °C	High Voltage	J-Lead	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF ±10% 1000V (1kV) Ceramic Capacitor X7R Nonstandard SMD
