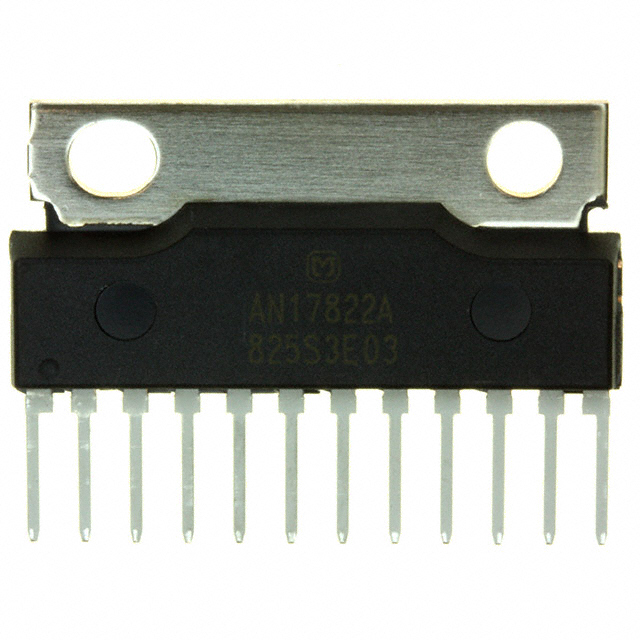

AN17822A

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 5W 12SIL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 5W 12SIL

Technical Specifications

Parameters and characteristics for this part

Specification	AN17822A

Features	Thermal Protection, Volume Control, Standby
Max Output Power x Channels @ Load	5 W
Max Output Power x Channels @ Load [x]	2
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	3.5 V

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Features	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Supplier Device Package
Panasonic Industrial Automation Sales AN17822A	Class AB	70 °C	-25 °C	12-SIP + Tab	2-Channel (Stereo)	Standby Thermal Protection Volume Control	Through Hole	15 V	3.5 V	5 W	2	12-SIL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
