9WP0924G401

Active

Sanyo Denki America Inc.

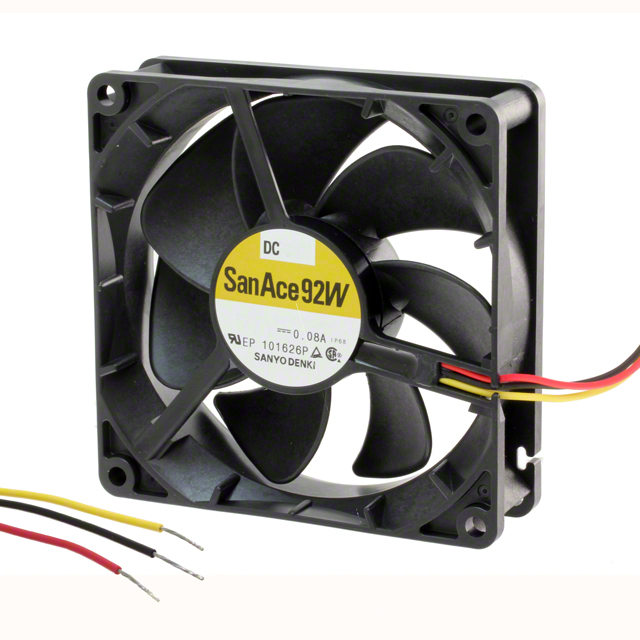

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Splash Proof Fan

9WP0924G401

Active

Sanyo Denki America Inc.

FAN AXIAL 92X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Splash Proof Fan

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.16
		10	$ 29.38
		25	$ 28.26
		60	$ 26.40
		120	$ 24.36
		300	$ 23.98

Description

General part information

9WP0924 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 62.2 CFM (1.74m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Rotor Balancing

Numbering System Splash Proof Fan

Related Document

Specification	9WP0924G401	9WP0924 Series

Air Flow	62.2 CFM	31.8 - 62.2 CFM
Air Flow	1.74 mł/min	0.89 - 51.2 m³/min
Air Flow	-	1.43 m³/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL, UR
Bearing Type	Ball	Ball
Current Rating (Amps)	0.19 A	0.19 - 150 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach)	Speed Sensor (Tach), Locked Rotor Sensor
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	43 dB	23 - 43 dB(A)
Operating Temperature	-	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 - -10 °C
Operating Temperature [Min]	-20 C	-20 - -10 C
Power (Watts)	4.56 W	1.2 - 4.56 W
RPM	3900 RPM	2000 - 3900 RPM
Static Pressure	0.267 in H2O	0.072 - 0.267 in H2O
Static Pressure	66.5 Pa	17.9 - 66.5 Pa
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	27.6 VDC
Voltage Range [Min]	12 VDC	12 VDC
Weight	0.265 lb	0.265 lb
Weight	120.2 g	120.2 g
Width [y]	25 mm	25 mm

Part

Noise

Static Pressure

Air Flow

Bearing Type

Material - Blade

Voltage - Rated

Lifetime @ Temp.

Ingress Protection

Current Rating (Amps)

Material - Frame

RPM

Fan Type

Termination

Approval Agency

Width [y]

Operating Temperature [Min]

Operating Temperature [Max]

Operating Temperature [Min]

Operating Temperature [Max]

Voltage Range [Max]

Voltage Range [Min]

Power (Watts)

Weight

Features

Operating Temperature [Max]

Air Flow

Sanyo Denki America Inc.

9WP0924S402

39 dB(A)

0.225 in H2O

56 Pa

58.6 CFM

1.64 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

150 mA

Plastic

3550 RPM

Tubeaxial

2 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

3.6 W

0.265 lb

120.2 g

Sanyo Denki America Inc.

9WP0924F401

30 dB(A)

0.129 in H2O

32.1 Pa

43.8 CFM

1.23 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

Plastic

2650 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

1.92 W

0.265 lb

120.2 g

Speed Sensor (Tach)

Sanyo Denki America Inc.

9WP0924G4D01

43 dB

0.267 in H2O

66.5 Pa

62.2 CFM

1.74 mł/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

0.19 A

Plastic

3900 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

4.56 W

0.265 lb

120.2 g

Locked Rotor Sensor

Sanyo Denki America Inc.

9WP0924S4011

39 dB(A)

0.225 in H2O

56 Pa

58.6 CFM

1.64 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

150 mA

Plastic

3550 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

3.6 W

0.265 lb

120.2 g

Speed Sensor (Tach)

Sanyo Denki America Inc.

9WP0924B401

23 dB(A)

0.072 in H2O

17.9 Pa

31.8 CFM

0.89 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

50 mA

Plastic

2000 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-10 °C

70 °C

27.6 VDC

12 VDC

1.2 W

0.265 lb

120.2 g

Speed Sensor (Tach)

70 °C

Sanyo Denki America Inc.

9WP0924F4D01

30 dB(A)

0.129 in H2O

32.1 Pa

43.8 CFM

1.23 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

Plastic

2650 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

1.92 W

0.265 lb

120.2 g

Locked Rotor Sensor

Sanyo Denki America Inc.

9WP0924S401

39 dB(A)

0.225 in H2O

56 Pa

58.6 CFM

1.64 m³/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

150 mA

Plastic

3550 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UR

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

3.6 W

0.265 lb

120.2 g

Speed Sensor (Tach)

Sanyo Denki America Inc.

9WP0924H401

33 dB(A)

0.177 in H2O

44.1 Pa

51.2 CFM

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

100 mA

Plastic

3150 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

2.4 W

0.265 lb

120.2 g

Speed Sensor (Tach)

1.43 m³/min

Sanyo Denki America Inc.

9WP0924G401

43 dB

0.267 in H2O

66.5 Pa

62.2 CFM

1.74 mł/min

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

0.19 A

Plastic

3900 RPM

Tubeaxial

3 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

4.56 W

0.265 lb

120.2 g

Speed Sensor (Tach)

Sanyo Denki America Inc.

9WP0924H402

33 dB(A)

0.177 in H2O

44.1 Pa

51.2 CFM

Ball

Plastic

24 VDC

40000 Hrs

IP68 - Dust Tight, Waterproof

100 mA

Plastic

3150 RPM

Tubeaxial

2 Wire Leads

CSA, TUV, UL

25 mm

-20 °C

70 °C

-20 C

70 °C

27.6 VDC

12 VDC

2.4 W

0.265 lb

120.2 g

1.43 m³/min

Part	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Bearing Type	Material - Blade	Voltage - Rated	Lifetime @ Temp.	Ingress Protection	Current Rating (Amps)	Material - Frame	RPM	Fan Type	Termination	Approval Agency	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Weight	Weight	Features	Operating Temperature [Max]	Air Flow
Sanyo Denki America Inc. 9WP0924S402	39 dB(A)	0.225 in H2O	56 Pa	58.6 CFM	1.64 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	150 mA	Plastic	3550 RPM	Tubeaxial	2 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	3.6 W	0.265 lb	120.2 g
Sanyo Denki America Inc. 9WP0924F401	30 dB(A)	0.129 in H2O	32.1 Pa	43.8 CFM	1.23 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof		Plastic	2650 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	1.92 W	0.265 lb	120.2 g	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0924G4D01	43 dB	0.267 in H2O	66.5 Pa	62.2 CFM	1.74 mł/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	0.19 A	Plastic	3900 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	4.56 W	0.265 lb	120.2 g	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP0924S4011	39 dB(A)	0.225 in H2O	56 Pa	58.6 CFM	1.64 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	150 mA	Plastic	3550 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	3.6 W	0.265 lb	120.2 g	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0924B401	23 dB(A)	0.072 in H2O	17.9 Pa	31.8 CFM	0.89 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	50 mA	Plastic	2000 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-10 °C		-10 °C	70 °C	27.6 VDC	12 VDC	1.2 W	0.265 lb	120.2 g	Speed Sensor (Tach)	70 °C
Sanyo Denki America Inc. 9WP0924F4D01	30 dB(A)	0.129 in H2O	32.1 Pa	43.8 CFM	1.23 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof		Plastic	2650 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	1.92 W	0.265 lb	120.2 g	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP0924S401	39 dB(A)	0.225 in H2O	56 Pa	58.6 CFM	1.64 m³/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	150 mA	Plastic	3550 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UR	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	3.6 W	0.265 lb	120.2 g	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0924H401	33 dB(A)	0.177 in H2O	44.1 Pa		51.2 CFM	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	100 mA	Plastic	3150 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	2.4 W	0.265 lb	120.2 g	Speed Sensor (Tach)		1.43 m³/min
Sanyo Denki America Inc. 9WP0924G401	43 dB	0.267 in H2O	66.5 Pa	62.2 CFM	1.74 mł/min	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	0.19 A	Plastic	3900 RPM	Tubeaxial	3 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	4.56 W	0.265 lb	120.2 g	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0924H402	33 dB(A)	0.177 in H2O	44.1 Pa		51.2 CFM	Ball	Plastic	24 VDC	40000 Hrs	IP68 - Dust Tight, Waterproof	100 mA	Plastic	3150 RPM	Tubeaxial	2 Wire Leads	CSA, TUV, UL	25 mm	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	2.4 W	0.265 lb	120.2 g			1.43 m³/min
