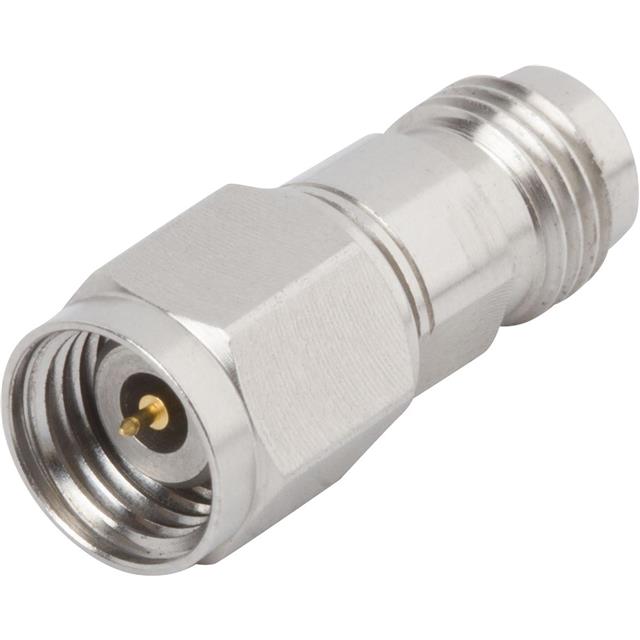

SF1133-6010

Active

Amphenol SV Microwave

1.85MM MALE TO FEMALE ADAPTER /INDIVIDUAL - BAG (PACK FILL QTY: 1)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF1133-6010

Active

Amphenol SV Microwave

1.85MM MALE TO FEMALE ADAPTER /INDIVIDUAL - BAG (PACK FILL QTY: 1)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1133-6010

Adapter Series [Max]	1.85 mm
Adapter Series [Min]	1.85 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	1.85 mm
Convert From (Adapter End)	Plug, Male Pin
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

SF1133 Series

Part	Convert From (Adapter End)	Convert From (Adapter End)	Center Contact Plating	Adapter Type	Body Material	Impedance	Convert To (Adapter End)	Center Contact Material	Frequency - Max [Max]	Mounting Type	Mating Cycles	Adapter Series [Min]	Adapter Series [Max]	Conversion Type	Style	Insertion Loss	Dielectric Material	Center Gender	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Adapter Series	Convert To (Adapter End)
Amphenol SV Microwave SF1133-6010	1.85 mm	Plug Male Pin	Gold	Plug to Jack	Stainless Steel	50 Ohms	1.85mm Jack Female Socket	Beryllium Copper	65 GHz	Free Hanging (In-Line)	500	1.85 mm	1.85 mm	Same Series	Straight
Amphenol SV Microwave SF1133-6004	2.4 mm		Gold	Plug to Jack	Stainless Steel	50 Ohms	1.85mm Plug Male Pin	Beryllium Copper	50 GHz	Free Hanging (In-Line)	500			Between Series	Straight	0.4 dB	Polychlorotrifluoroethylene (PCTFE) Polyetherimide (PEI)
Amphenol SV Microwave SF1133-6008		1.85mm Jack Female Socket	Gold	Jack to Jack	Stainless Steel	50 Ohms	1.85mm Jack Female Socket	Beryllium Copper	65 GHz	Free Hanging (In-Line)	500	1.85 mm	1.85 mm	Same Series	Straight			Female to Female
Amphenol SV Microwave SF1133-6007		Female Socket SMPM Jack	Gold	Jack to Jack	Stainless Steel	50 Ohms	1.85mm Jack Female Socket	Beryllium Copper	65 GHz	Free Hanging (In-Line)	500			Between Series	Straight		Polytetrafluoroethylene (PTFE)	Female to Female	Snap-On Threaded	-65 ░C	165 °C	1.85 mm	SMPM
Amphenol SV Microwave SF1133-6006	1.85 mm	Plug Male Pin	Gold	Plug to Plug	Stainless Steel	50 Ohms	2.4mm (APC-2.4 OS-50) Plug Male Pin	Beryllium Copper	50 GHz	Free Hanging (In-Line)	500			Between Series	Straight	0.4 dB	Polychlorotrifluoroethylene (PCTFE) Polyetherimide (PEI)	Male to Male
Amphenol SV Microwave SF1133-6009	1.85 mm	Plug Male Pin	Gold	Plug to Plug	Stainless Steel	50 Ohms	1.85mm Plug Male Pin	Beryllium Copper	65 GHz	Free Hanging (In-Line)	500	1.85 mm	1.85 mm	Same Series	Straight			Male to Male
Amphenol SV Microwave SF1133-6003		1.85mm Jack Female Socket	Gold	Jack to Jack	Stainless Steel	50 Ohms		Beryllium Copper	50 GHz	Free Hanging (In-Line)	500			Between Series	Straight	0.4 dB	Polychlorotrifluoroethylene (PCTFE) Polyetherimide (PEI)	Female to Female						2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 487.81
		10	$ 452.04
Newark	Each	25	$ 459.81
		50	$ 432.76

Description

General part information

SF1133 Series

Adapter Coaxial Connector 1.85mm Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
