CMSH3-150MFL TR13 PBFREE

Active

Central Semiconductor Corp

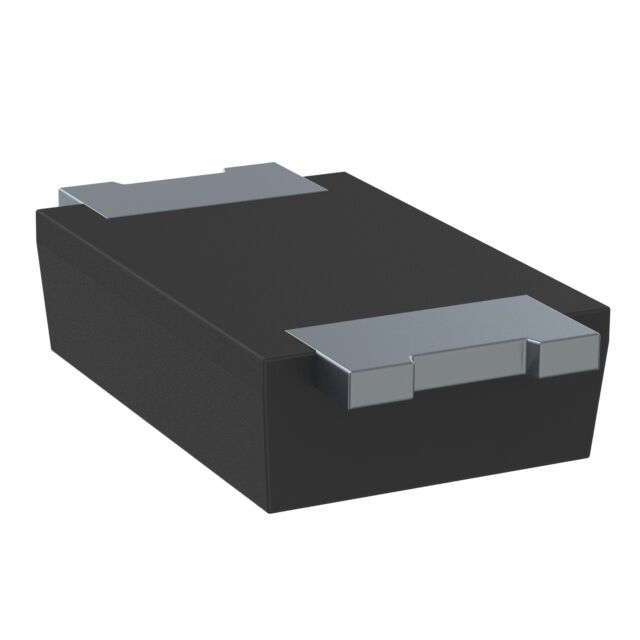

DIODE SCHOTTKY 150V 3A SMAFLAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMSH3-150MFL TR13 PBFREE

Active

Central Semiconductor Corp

DIODE SCHOTTKY 150V 3A SMAFLAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMSH3-150MFL TR13 PBFREE

Capacitance @ Vr, F	90 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SMA Flat Leads, DO-221AC
Speed	200 mA, 500 ns
Supplier Device Package	SMAflat
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	900 mV

CMSH3 Series

Part	Package / Case	Mounting Type	Technology	Supplier Device Package	Current - Average Rectified (Io)	Speed	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]
Central Semiconductor Corp CMSH3-150MFL TR13 PBFREE	DO-221AC SMA Flat Leads	Surface Mount	Schottky	SMAflat	3 A	200 mA 500 ns	900 mV	90 pF	50 µA	150 °C	-65 C
Central Semiconductor Corp CMSH3-60M TR13 PBFREE	DO-214AA SMB	Surface Mount	Schottky	SMB	3 A	200 mA 500 ns	750 mV	280 pF	500 µA	150 °C	-65 C	60 V
Central Semiconductor Corp CMSH3-100MFL TR13 PBFREE	DO-221AC SMA Flat Leads	Surface Mount	Schottky	SMAflat	3 A	200 mA 500 ns	800 mV	110 pF	50 µA	150 °C	-65 C	100 V
Central Semiconductor Corp CMSH3-60M BK PBFREE	DO-214AA SMB	Surface Mount	Schottky	SMB	3 A	200 mA 500 ns	700 mV	121 pF	500 µA	150 °C	-65 C	60 V
Central Semiconductor Corp CMSH3-60 TR13 PBFREE	DO-214AB SMC	Surface Mount	Schottky	SMC	3 A	200 mA 500 ns	700 mV		500 µA	150 °C	-65 C	60 V
Central Semiconductor Corp CMSH3-100 TR13 PBFREE	DO-214AB SMC	Surface Mount	Schottky	SMC	3 A	200 mA 500 ns	800 mV		500 µA	150 °C	-65 C	100 V
Central Semiconductor Corp CMSH3-40MA TR13 PBFREE	DO-214AC SMA	Surface Mount	Schottky	SMA	3 A	200 mA 500 ns	500 mV	280 pF	500 µA	150 °C	-65 C	40 V
Central Semiconductor Corp CMSH3-40 TR13 PBFREE	DO-214AB SMC	Surface Mount	Schottky	SMC	3 A	200 mA 500 ns	500 mV		500 µA	150 °C	-65 C	40 V
Central Semiconductor Corp CMSH3-40 BK PBFREE	DO-214AB SMC	Surface Mount	Schottky	SMC	3 A	200 mA 500 ns	500 mV	510 pF	500 µA	150 °C	-65 C	40 V
