SF4B-F23G(V2)

Obsolete

Panasonic Industrial Automation Sales

LIGHT CURTAIN FINGER 14MM

SF4B-F23G(V2)

Obsolete

Panasonic Industrial Automation Sales

LIGHT CURTAIN FINGER 14MM

Description Specifications Series Pricing CAD Documents

Description

General part information

SF4B Series

Light Curtain 14mm Finger Blanking, Muting Function

Technical Specifications

Parameters and characteristics for this part

Specification	SF4B-F23G(V2)

Beam Pitch	10 mm
Detection Capability	14 mm
Features	Muting Function, Blanking
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Number of Beams	23
Operating Range (Max)	7 m
Operating Range (Min)	0.3 m
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Protection	Finger
Protective Height	244 mm
Voltage - Supply	24 VDC

SF4B Series

Part	Beam Pitch	Ingress Protection Description	Ingress Protection IP Rating	Protective Height	Operating Range (Min)	Operating Range (Max)	Voltage - Supply	Protection	Detection Capability	Number of Beams	Features	Operating Temperature (Min)	Operating Temperature (Max)

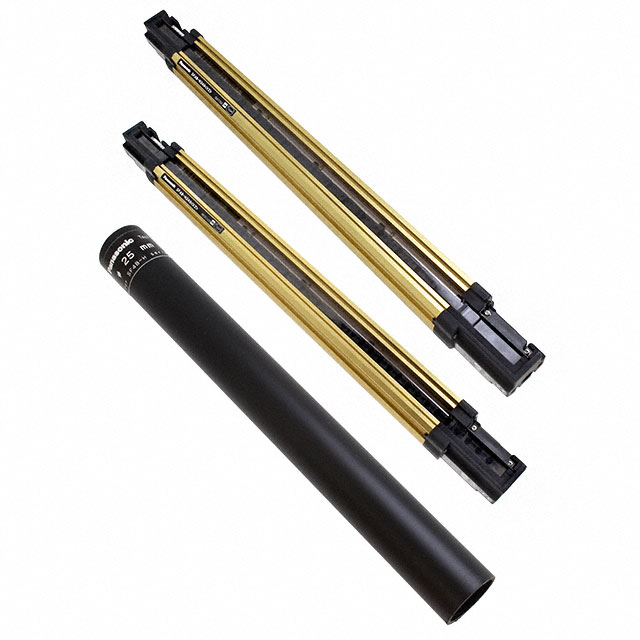

Panasonic Industrial Automation Sales SF4B-H24G(V2)	20 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	484 mm	0.3 m	9 m	24 VDC	Hand	25 mm	24	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-F31G(V2)	10 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	324 mm	0.3 m	7 m	24 VDC	Finger	14 mm	31	Blanking Muting Function	-10 °C	55 °C

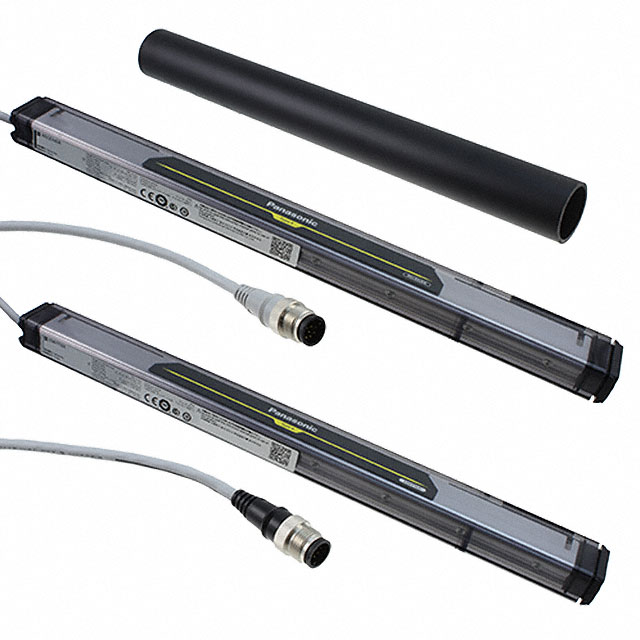

Panasonic Industrial Automation Sales SF4B-H16CA-J05	20 mm	Dust Tight Water Resistant	IP65	343 mm	0.3 m	7 m	24 VDC	Hand	25 mm	16	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-F23G(V2)	10 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	244 mm	0.3 m	7 m	24 VDC	Finger	14 mm	23	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-A44G(V2)	40 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	1764 mm	0.3 m	7 m	24 VDC	Arm Foot	45 mm	44	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-H72G-01(V2)	20 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	1444 mm	0.3 m	7 m	24 VDC	Hand	25 mm	72	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-A24C	40 mm	Dust Tight Water Resistant	IP65	983 mm	0.3 m	7 m	24 VDC	Arm Foot	45 mm	24	Blanking Muting Function	-10 °C	55 °C

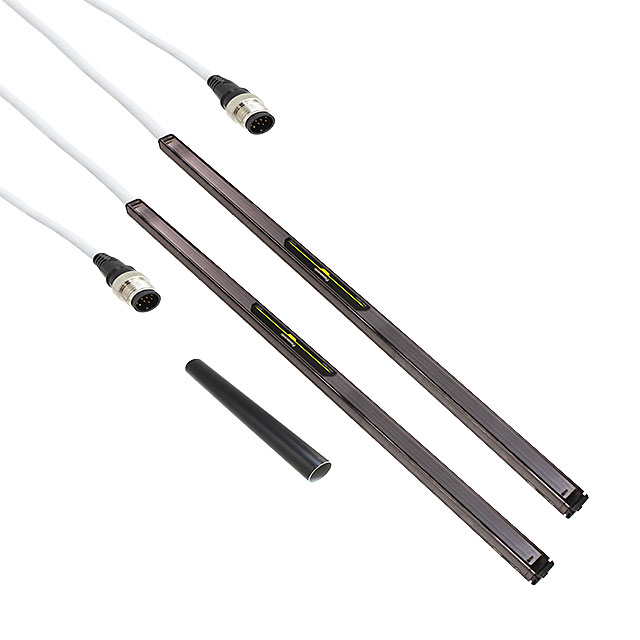

Panasonic Industrial Automation Sales SF4B-H48CA-J05	20 mm	Dust Tight Water Resistant	IP65	983 mm	0.3 m	7 m	24 VDC	Hand	25 mm	48	Blanking Muting Function	-10 °C	55 °C
Panasonic Industrial Automation Sales SF4B-A24G(V2)	40 mm	Dust Tight Water Resistant Waterproof	IP65 IP67	964 mm	0.3 m	9 m	24 VDC	Arm Foot	45 mm	24	Blanking Muting Function	-10 °C	55 °C

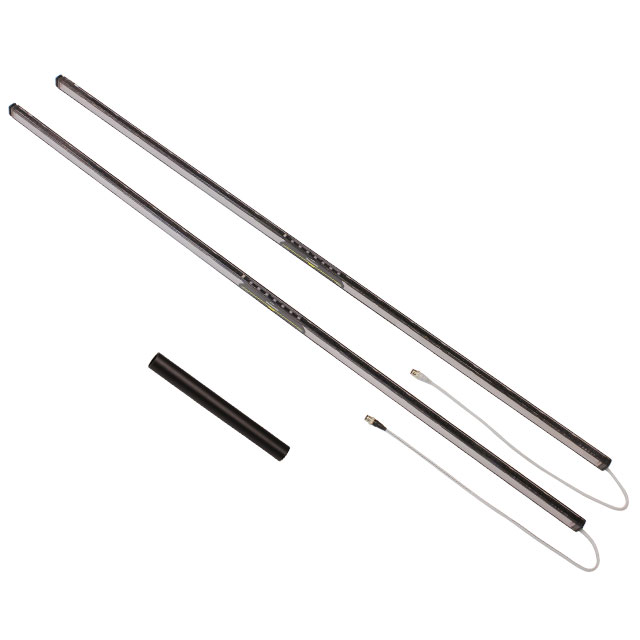

Panasonic Industrial Automation Sales SF4B-H72CA-J05	20 mm	Dust Tight Water Resistant	IP65	1463 mm	0.3 m	7 m	24 VDC	Hand	25 mm	72	Blanking Muting Function	-10 °C	55 °C
