1178L SL001

Active

ALPHA WIRE

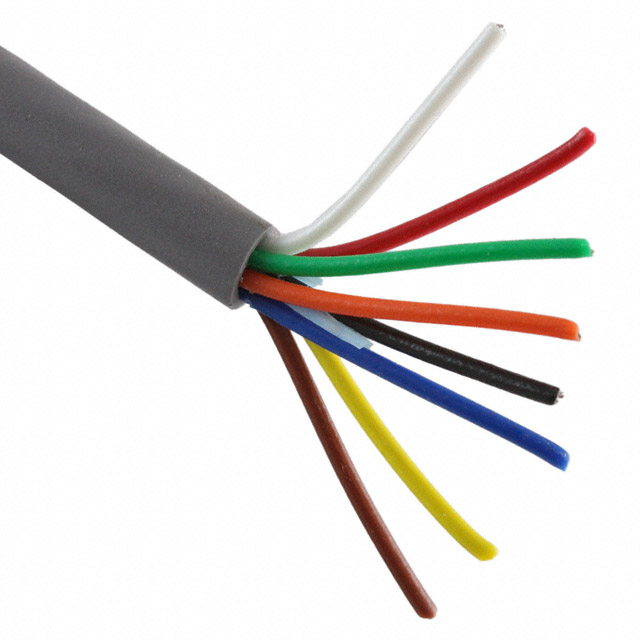

CABLE 8COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 22AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1178L SL001	1178L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.22 in	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm	5.59 mm
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	8	8
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 8COND 22AWG SLATE

Part	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cable Type	Wire Gauge	Usage	Number of Conductors	Conductor Insulation	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 1178L SL001	Copper, Tinned	0.025 in	0.635 mm	300 V	0.22 in	5.59 mm	Slate	Multi-Conductor	22 AWG	Communication, Control	8	Low Smoke Zero Halogen (LSZH)	1000 ft	304.8 m	7	30 AWG
ALPHA WIRE 1178L SL005	Copper, Tinned	0.025 in	0.635 mm	300 V	0.22 in	5.59 mm	Slate	Multi-Conductor	22 AWG	Communication, Control	8	Low Smoke Zero Halogen (LSZH)			7	30 AWG	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
