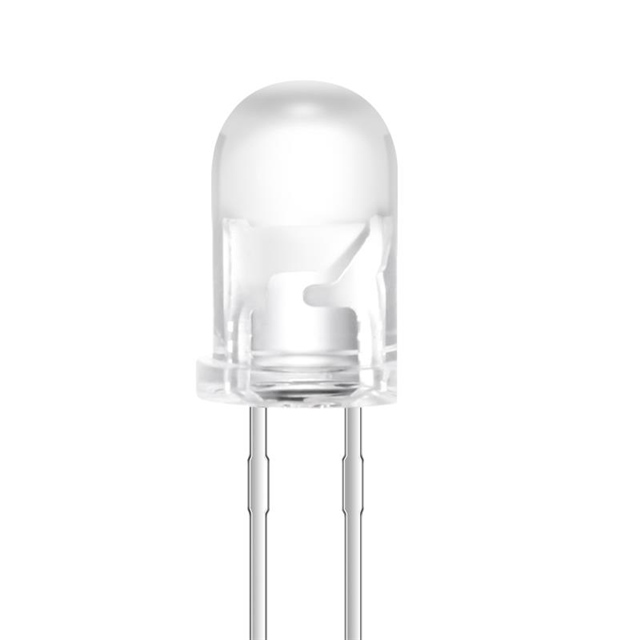

XLM2CRK14W
ActiveSunLED
LED RED CLEAR T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLM2CRK14W
ActiveSunLED
LED RED CLEAR T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLM2CRK14W |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Colorless |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2890 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak [custom] | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 25000 | $ 0.10 | |||
Description
General part information
XLM2CRK14 Series
Red 625nm LED Indication - Discrete 2.2V Radial
