Q-0D01Q0005.75M

Active

Amphenol Custom Cable

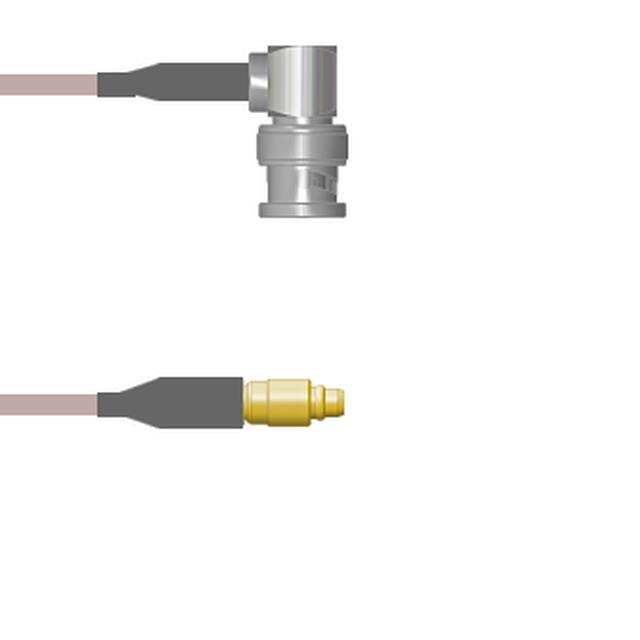

COAX CBL BNC TO MMCX 29.5"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D01Q0005.75M

Active

Amphenol Custom Cable

COAX CBL BNC TO MMCX 29.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D01Q0005.75M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0D01Q0 Series

Part	2nd Contact Gender	2nd Connector	Cable Type	Style	Color	1st Contact Gender	Features	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Type	Overall Impedance
Amphenol Custom Cable Q-0D01Q0003003M	Male	MMCX Plug	RG-174	BNC to MMCX	Black	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q00051.5M	Male	MMCX Plug	RG-316	BNC to MMCX	Copper	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1.5 m	59.1 in	4.9 ft	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q0005.75M	Male	MMCX Plug	RG-316	BNC to MMCX	Copper	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	750 mm	29.53 "		Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q00050.5M	Male	MMCX Plug	RG-316	BNC to MMCX	Copper	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	50 cm	19.69 "		Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q00030.5M	Male	MMCX Plug	RG-174	BNC to MMCX	Black	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	50 cm	19.69 "		Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q0003048i	Male	MMCX Plug	RG-174	BNC to MMCX	Black	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1200 mm	48 in	4 ft	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q0003084i	Male	MMCX Plug	RG-174	BNC to MMCX	Black	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	2.1 m	84 in	7 ft	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q00031.5M	Male	MMCX Plug	RG-174	BNC to MMCX	Black	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1.5 m	59.1 in	4.9 ft	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q0005060i	Male	MMCX Plug	RG-316	BNC to MMCX	Copper	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1.5 m	5 '	5 ft	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0D01Q0005003M	Male	MMCX Plug	RG-316	BNC to MMCX	Copper	Male	Shielded	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.96
		25	$ 80.35
		50	$ 78.74
		100	$ 77.13
		250	$ 75.53

Description

General part information

Q-0D01Q0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
