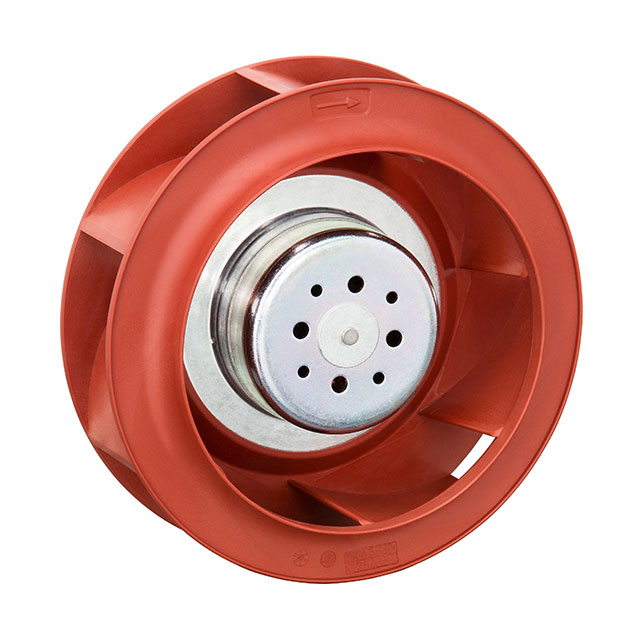

RER175-42/18/2TDP

Active

ebm-papst Inc.

FAN IMP MTRZD 175X69MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 175X69MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER175-42/18/2TDP

Air Flow	576.8 CFM
Air Flow	16.15 mł/min
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Plastic, Fiberglass Reinforced
Power (Watts)	166 W
RPM	5400 RPM
Size / Dimension [diameter]	175 mm Dia
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	771.1 g
Weight	1.7 lbs
Width [x]	69 mm

Part	Termination	Material - Blade	Width [x]	Voltage Range [Max]	Voltage Range [Min]	Features	Air Flow	Air Flow	Fan Type	RPM	Weight	Weight	Power (Watts)	Voltage - Rated [custom]	Bearing Type	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Ingress Protection
ebm-papst Inc. RER175-42/18/2TDP	4 Wire Leads	Plastic Fiberglass Reinforced	69 mm	72 VDC	36 VDC	PWM Control Speed Sensor (Tach)	576.8 CFM	16.15 mł/min	Motorized Impellers	5400 RPM	771.1 g	1.7 lbs	166 W	48 VDC	Ball	175 mm Dia
ebm-papst Inc. RER175-42/14/2TDMP	4 Wire Leads	Plastic Fiberglass Reinforced	69 mm	36 VDC	16 VDC	PWM Control Speed Sensor (Tach)	509 CFM	14.25 m³/min	Motorized Impellers	4800 RPM	780 g	1.7 lbs	110 W		Ball	175 mm Dia	70000 Hrs	24 VDC	-20 °C	-20 C	65 °C	65 °C
ebm-papst Inc. RER175-42/14/2TDMLP	4 Wire Leads	Plastic Fiberglass Reinforced	69 mm	30 V	16 VDC	PWM Control Speed Sensor (Tach)	353 CFM	9.88 mł/min	Motorized Impellers	3400 RPM	780 g	1.7 lbs	48 W		Ball	175 mm Dia	72500 Hrs	24 VDC	-20 °C	-20 C	65 °C	65 °C
ebm-papst Inc. RER175-42/18/2TDMLP	4 Wire Leads	Plastic Fiberglass Reinforced	69 mm			PWM Control Speed Sensor (Tach)	353 CFM	9.88 mł/min	Motorized Impellers	3400 RPM	771.1 g	1.7 lbs	42 W	48 VDC	Ball	175 mm Dia
ebm-papst Inc. RER175-42/14/2TDMLPU	2 Wire Leads		69 mm	30 V	16 VDC		353 CFM	9.88 mł/min	Motorized Impellers	3400 RPM	771.1 g	1.7 lbs	48 W		Ball	175 mm Dia		24 VDC	-20 °C	-20 C	65 °C	65 °C	UL	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 576.8 CFM (16.15mł/min) 4 Wire Leads
