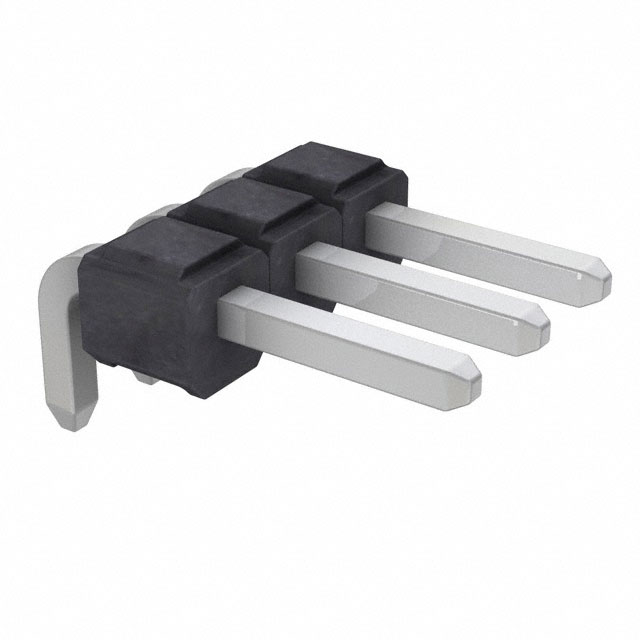

929835-01-03-RK

Active

3M (TC)

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929835-01-03-RK

Active

3M (TC)

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929835-01-03-RK

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929835 Series

Part	Contact Length - Mating [x]	Contact Length - Mating	Mounting Type	Contact Shape	Contact Type	Contact Material	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Termination	Connector Type	Shrouding	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
3M (TC) 929835-01-33-RK	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	33	Black	UL94 V-0	5.08 µm	200 µin	1	-40 °C	105 ░C	All	Polycyclohexylenedimethylene Terephthalate (PCT)	2.5 A	Solder	Breakaway Header	Unshrouded	Tin	0.1 in	2.54 mm
3M (TC) 929835-01-32	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm		Black	UL94 V-0	2.54 çm	100 çin	1	-40 °C	105 ░C	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead
3M (TC) 929835-01-32-RK	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm		Black	UL94 V-0	5.08 µm	200 µin	1	-40 °C	105 ░C	All	Polycyclohexylenedimethylene Terephthalate (PCT)	2.5 A	Solder	Breakaway Header	Unshrouded	Tin	0.1 in	2.54 mm
3M (TC) 929835-01-22	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	22 positions	Black	UL94 V-0	2.54 çm	100 çin	1	-40 °C	105 ░C	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead
3M (TC) 929835-01-03-RK	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm		Black	UL94 V-0	5.08 µm	200 µin	1	-40 °C	105 ░C	All	Polycyclohexylenedimethylene Terephthalate (PCT)	2.5 A	Solder	Breakaway Header	Unshrouded	Tin	0.1 in	2.54 mm
3M (TC) 929835-01-02	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	2	Black	UL94 V-0	2.54 çm	100 çin	1	-40 °C	105 ░C	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead
3M (TC) 929835-01-04	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	4	Black	UL94 V-0	2.54 çm	100 çin	1	-40 °C	105 ░C	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead
3M (TC) 929835-01-30	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	30	Black	UL94 V-0	2.54 çm	100 çin	1	-40 °C	105 ░C	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead
3M (TC) 929835-01-36-RK	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	36	Black	UL94 V-0	5.08 µm	200 µin	1	-40 °C	105 ░C	All	Polycyclohexylenedimethylene Terephthalate (PCT)	2.5 A	Solder	Breakaway Header	Unshrouded	Tin	0.1 in	2.54 mm
3M (TC) 929835-01-33	0.235 in	5.97 mm	Through Hole Right Angle	Square	Male Pin	Copper Alloy	Push-Pull	0.11 in	2.79 mm	33	Black	UL94 V-0			1			All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.5 A	Solder	Breakaway Header	Unshrouded		0.1 in	2.54 mm	Tin-Lead	100 in	2.54 m	105 C	-40 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32
		10	$ 0.27
		100	$ 0.21
		500	$ 0.18
		1000	$ 0.15
		5000	$ 0.13
		10000	$ 0.12

Description

General part information

929835 Series

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
