PB6B2FM2M1CAL00Y500

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 125MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

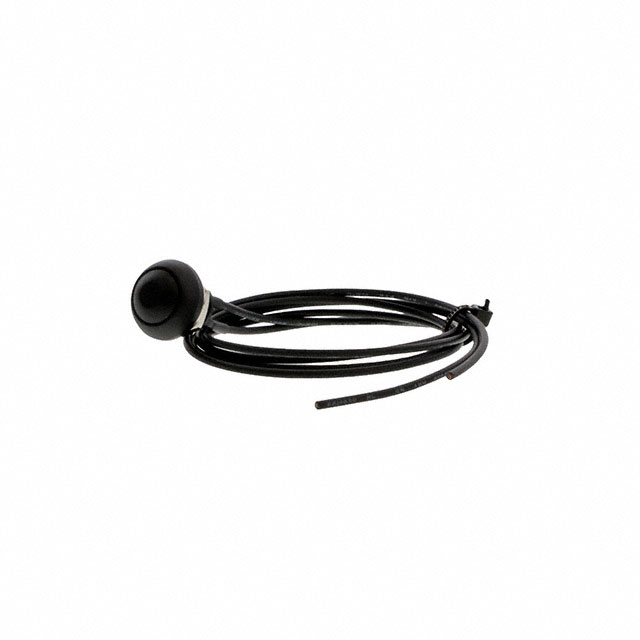

PB6B2FM2M1CAL00Y500

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 125MA 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PB6B2FM2M1CAL00Y500

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA, 200 mA
Electrical Life	500000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

ALCOSWITCH PB6 Series

...

Part	Current Rating (Amps)	Electrical Life	Circuit	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Switch Function	Actuator Marking	Mechanical Life	Termination Style	Mounting Type	Color - Actuator/Cap	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - DC	Illumination Type, Color
TE Connectivity Raychem Cable Protection PB6B2FM5M1CAL00Y500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Yellow	Button Round	13.6 mm	Standard	50 VDC
TE Connectivity Raychem Cable Protection PB6B2FM3M1CAL07Y500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Red	Button Round	13.6 mm	Illuminated Standard	50 VDC	Blue LED
TE Connectivity Raychem Cable Protection PB6B2FM3M1CAL06S500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Red	Button Round	13.6 mm	Illuminated Standard	50 VDC	Green LED
TE Connectivity Raychem Cable Protection PB6B2FM6M1CAL00	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Solder Lug	Panel Mount Front	Green	Button Round	13.6 mm	Standard	50 VDC
TE Connectivity Raychem Cable Protection PB6B2FM3M1CAL01S500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Red	Button Round	13.6 mm	Illuminated Standard	50 VDC	LED White
TE Connectivity Raychem Cable Protection PB6B2FM2M1CAL00Y500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Black	Button Round	13.6 mm	Standard	50 VDC
TE Connectivity Raychem Cable Protection PB6B2FM5M1CAL05S500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Yellow	Button Round	13.6 mm	Illuminated Standard	50 VDC	LED Yellow
TE Connectivity Raychem Cable Protection PB6B2RS2M3CAL00	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Solder Lug	Panel Mount Front	Black	Button Domed Round	13.6 mm	Standard	50 VDC
TE Connectivity Raychem Cable Protection PB6B2HS3M1CAL00Y500	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Wire Leads	Panel Mount Front	Red	Button Round	13.6 mm	Standard	50 VDC
TE Connectivity Raychem Cable Protection PB6B2HS6M1CAL00	125 mA 200 mA	500000 Cycles	SPST-NO	125 V	-30 ░C	85 °C	IP68 - Dust Tight Waterproof	Off-Mom	No Marking	1000000 Cycles	Solder Lug	Panel Mount Front	Green	Button Round	13.6 mm	Standard	50 VDC
