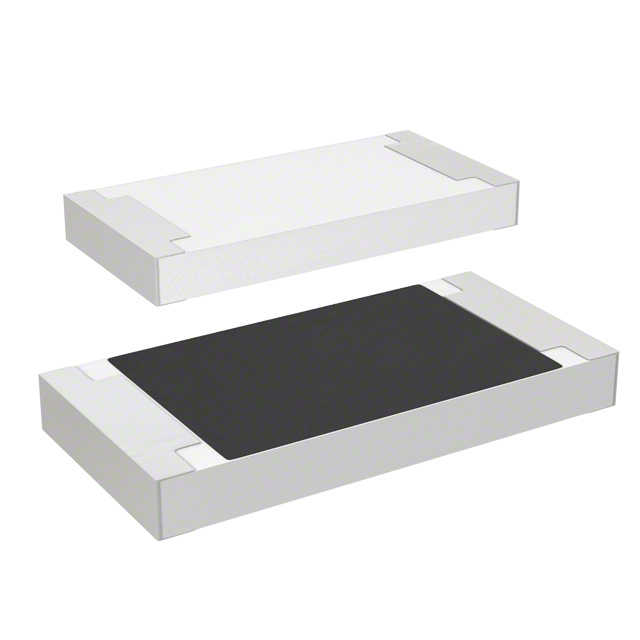

CRA2010-FZ-R010ELF

Obsolete

Bourns Inc.

RES 0.01 OHM 1% 1W 2010

Search across all available documentation for this part.

Obsolete

Bourns Inc.

RES 0.01 OHM 1% 1W 2010

Technical Specifications

Parameters and characteristics for this part

Specification	CRA2010-FZ-R010ELF

Composition	Metal Element
Features	Moisture Resistant, Current Sense
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	2010 (5025 Metric)
Power (Watts)	1 W
Resistance	10 mOhms
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Supplier Device Package	2010
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

Part	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Composition	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Temperature Coefficient	Package / Case
Bourns Inc. CRA2010-FZ-R010ELF	Current Sense Moisture Resistant	0.8 mm	0.031 "	2	170 °C	-55 °C	1 W	Metal Element	1 %	10 mOhms	0.197 in	0.098 in	5 mm	2.5 mm	2010	75 ppm/°C	2010 (5025 Metric)
Bourns Inc. CRA2010-FZ-R020ELF	Current Sense Moisture Resistant	0.8 mm	0.031 "	2	170 °C	-55 °C	1 W	Metal Element	1 %	0.02 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	2010	75 ppm/°C	2010 (5025 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 mOhms ±1% 1W Chip Resistor 2010 (5025 Metric) Current Sense, Moisture Resistant Metal Element
