DG2513DN-T1-E4

Obsolete

Vishay General Semiconductor - Diodes Division

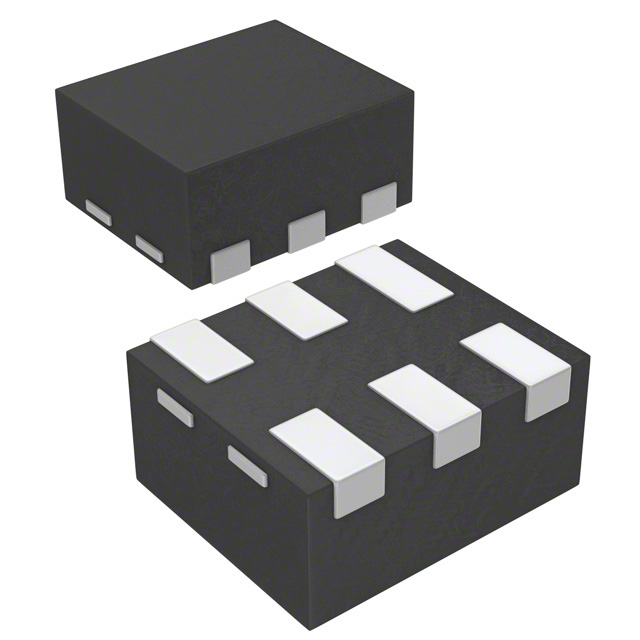

IC SW SPST-NOX1 1.3OHM 6MINIQFN

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

IC SW SPST-NOX1 1.3OHM 6MINIQFN

Technical Specifications

Parameters and characteristics for this part

Specification	DG2513DN-T1-E4

Channel Capacitance (CS(off), CD(off))	19 pF
Channel-to-Channel Matching (ΔRon) [Max]	150 mOhm
Charge Injection	14 pC
Crosstalk	-64 dB
Current - Leakage (IS(off)) (Max) [Max]	2 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max) [Max]	1.3 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-UFDFN
Switch Circuit	SPST - NO
Switch Time (Ton, Toff) (Max) [custom]	31 ns
Switch Time (Ton, Toff) (Max) [custom]	35 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V

Part	Multiplexer/Demultiplexer Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Crosstalk	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel-to-Channel Matching (ΔRon) [Max]	On-State Resistance (Max) [Max]	Charge Injection	Switch Circuit	Current - Leakage (IS(off)) (Max) [Max]	Package / Case	Mounting Type	Channel Capacitance (CS(off), CD(off))	Number of Circuits
Vishay General Semiconductor - Diodes Division DG2513DN-T1-E4	1:1	1.8 V	5.5 V	-64 dB	85 °C	-40 °C	31 ns	35 ns	150 mOhm	1.3 Ohm	14 pC	SPST - NO	2 nA	6-UFDFN	Surface Mount	19 pF	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Circuit IC Switch 1:1 1.3Ohm 6-miniQFN (1x1.2)
