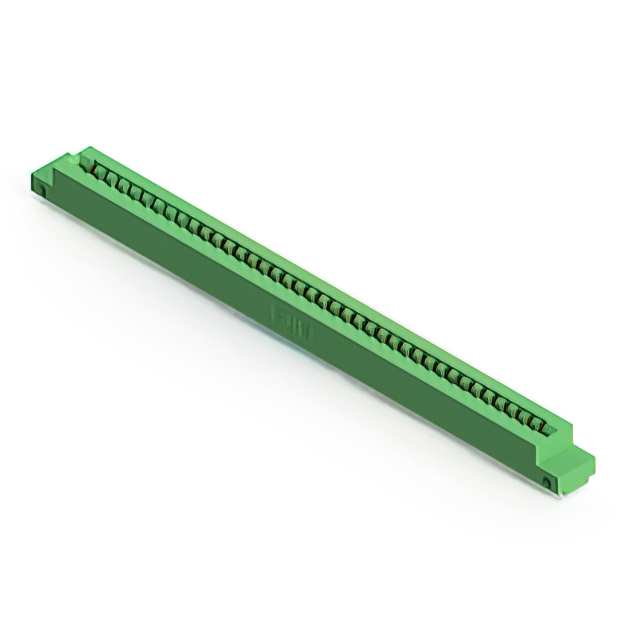

807-078-559-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-078-559-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-078-559-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 2 |
807-078 Series
| Part | Card Type | Number of Rows | Material - Insulation | Color | Number of Positions | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Material | Contact Type | Mounting Type | Termination Rows | Pitch [x] | Pitch [x] | Gender | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Tin | Copper Alloy | Semi Bellows | Through Hole Right Angle | 2 | 0.156 in | 3.96 mm | Female | Solder | Single | ||||||||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Through Hole | 2 | 0.156 in | 3.96 mm | Female | Solder Eyelet(s) | Dual | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | 2 | 0.156 in | 3.96 mm | Female | Solder | Dual | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Through Hole Right Angle | 2 | 0.156 in | 3.96 mm | Female | Solder | Single | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Tin | Copper Alloy | Semi Bellows | Through Hole | 2 | 0.156 in | 3.96 mm | Female | Solder Eyelet(s) | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Board Edge Straddle Mount | 2 | 0.156 in | 3.96 mm | Female | Solder | Dual | 10 Áin | 0.25 Ám | Card Extender | |||||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Tin | Copper Alloy | Semi Bellows | Through Hole | 2 | 0.156 in | 3.96 mm | Female | Solder | Dual | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Through Hole | 2 | 0.156 in | 3.96 mm | Female | Solder | Dual | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Gold | Copper Alloy | Semi Bellows | Through Hole Right Angle | 2 | 0.156 in | 3.96 mm | Female | Solder | Single | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |||
EDAC Inc. | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Green | 78 | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Tin | Copper Alloy | Semi Bellows | Through Hole | 2 | 0.156 in | 3.96 mm | Female | Solder | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 137.26 | |
Description
General part information
807-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
