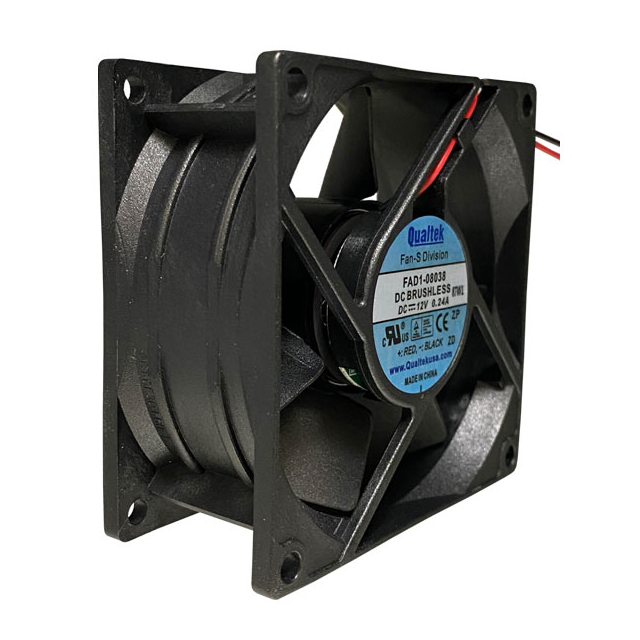

FAD1-08038CBHW12

Active

Qualtek

FAN AXIAL 80.5X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 80.5X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Current Rating (Amps)	RPM	Weight	Weight	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Width [y]	Bearing Type	Fan Type	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Air Flow	Air Flow	Material - Blade	Termination
Qualtek FAD1-08038CBHW12	70 °C	70 °C	-10 °C	-10 °C	39.9 dB(A)	0.26 A	3500 RPM	119.75 g	0.264 lb	Plastic	80.5 mm	80.5 mm	12 VDC	38 mm	Ball	Tubeaxial	3.12 W	0.222 in H2O	55.3 Pa	13.2 VDC	10.8 VDC	CE cURus TUV	1.49 mł/min	53.3 CFM	Plastic	2 Wire Leads
Qualtek FAD1-08038DBLW12	70 °C	70 °C	-10 °C	-10 °C	32.3 dB(A)		2500 RPM	119.75 g	0.264 lb	Plastic	80.5 mm	80.5 mm	24 VDC	38 mm	Ball	Tubeaxial	1.92 W	0.132 in H2O	32.9 Pa	26.4 VDC	21.6 VDC	CE cURus TUV	1.08 m³/min	38.7 CFM	Plastic	2 Wire Leads
Qualtek FAD1-08038DBHW12	70 °C	70 °C	-10 °C	-10 °C	39.9 dB(A)	140 mA	3500 RPM	119.75 g	0.264 lb	Plastic	80.5 mm	80.5 mm	24 VDC	38 mm	Ball	Tubeaxial	3.36 W	0.222 in H2O	55.3 Pa	26.4 VDC	21.6 VDC	CE cURus TUV	1.49 mł/min	53.3 CFM	Plastic	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80.5mm L x 80.5mm H Ball 53.3 CFM (1.49mł/min) 2 Wire Leads
