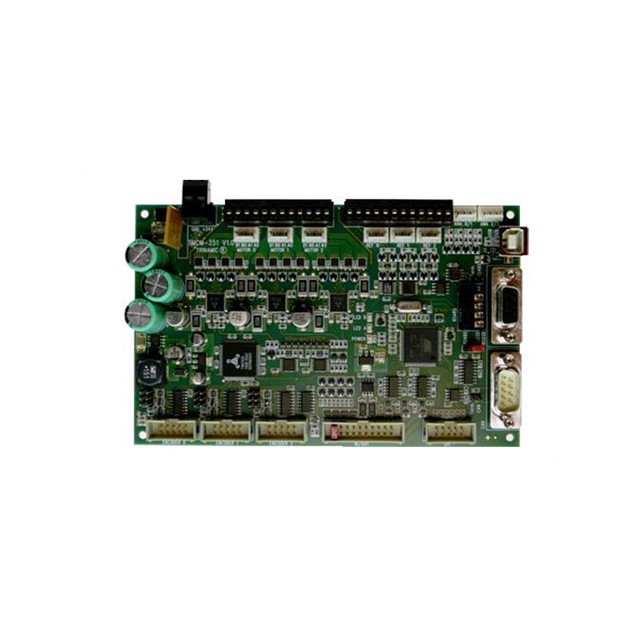

TMCM-351-E-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
MODULE STEPPER MOTOR DRIVER CONT
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-351-E-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
MODULE STEPPER MOTOR DRIVER CONT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-351-E-TMCL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 2.8 A |
| Interface | RS-232, USB, RS-485, SPI, CAN |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Number of Motors | 3 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Type | Board |
| Voltage - Load [Max] | 28.5 V |
| Voltage - Load [Min] | 7 V |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 523.39 | |
| 1 | $ 428.60 | |||
| 10 | $ 456.94 | |||
| 10 | $ 393.36 | |||
TMCM-351 Series
MODULE STEPPER MOTOR DRIVER CONT
| Part | Motor Type | Voltage - Supply | Interface | Number of Motors | Control / Drive Type | Type | Voltage - Load [Max] | Voltage - Load [Min] | Current - Output | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-351-E-TMCL | Stepper | 24 VDC | CAN, RS-232, RS-485, SPI, USB | 3 | Bipolar, Stepper | Board | 28.5 V | 7 V | 2.8 A | Chassis Mount | -20 C | 40 °C |
Description
General part information
TMCM-351 Series
Stepper, Bipolar 24VDC Supply 2.8A 7 ~ 28.5V Load
