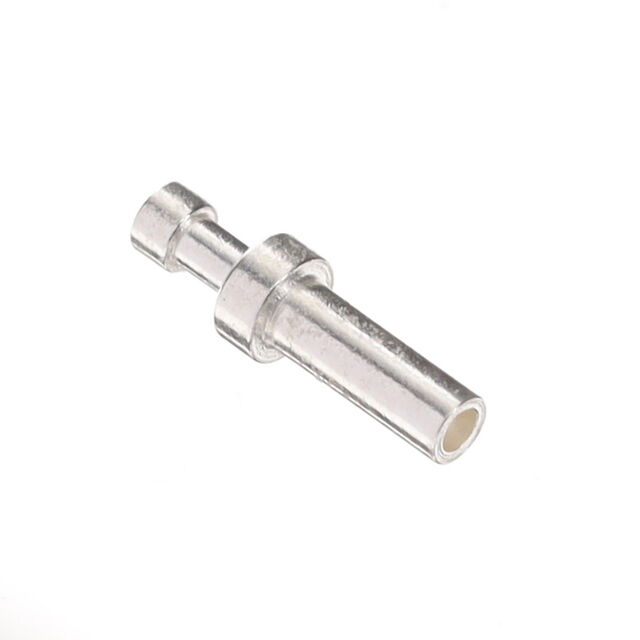

2113-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Search across all available documentation for this part.
2113-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2113-3-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.02 mm |
| Diameter - Turret Head [diameter] | 0.04 in |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.094 in |
| Length - Above Board [x] | 2.39 mm |
| Length - Below Flange [x] | 2.92 mm |
| Length - Below Flange [x] | 0.115 in |
| Length - Overall [x] | 5.31 mm |
| Length - Overall [x] | 0.209 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID [diameter] | 0.66 mm |
| Staking Side ID [diameter] | 0.026 in |
| Staking Side OD [diameter] | 1.02 mm |
| Staking Side OD [diameter] | 0.04 in |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.41 | |||
| 3000 | $ 0.37 | |||
Description
General part information
2113-3 Series
Terminal Turret Connector Single End 0.094" (2.39mm) Silver
