456E-117
ObsoleteAmphenol ICC (Commercial Products)

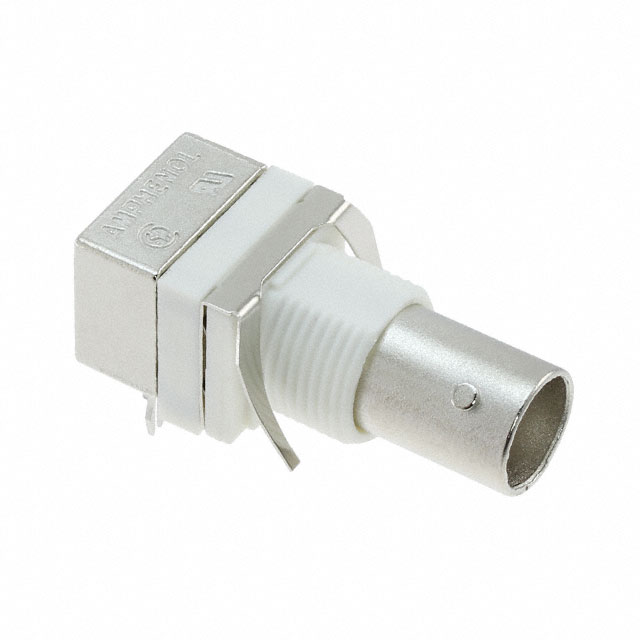

CONN BNC JACK R/A 50OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
456E-117
ObsoleteAmphenol ICC (Commercial Products)
CONN BNC JACK R/A 50OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 456E-117 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Board Lock, Filter |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shield Termination | Solder |
| Voltage Rating | 200 V |
456 Series
| Part | Fastening Type | Contact Termination | Number of Ports | Impedance | Body Finish | Mounting Type | Body Material | Connector Type | Mounting Feature | Features | Center Contact Material | Housing Color | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shield Termination | Connector Style | Conversion Type | Dielectric Material | Adapter Series | Convert To (Adapter End) | Mating Cycles | Adapter Type | Style | Center Gender | Includes | Convert From (Adapter End) | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | |||||||||||||||||||||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | Solder | 1 | 50 Ohms | Nickel | Panel Mount Right Angle Through Hole | Zinc Die Cast | Female Socket Jack | Bulkhead - Front Side Nut | Board Lock Filter | Phosphor Bronze | Silver | Gold | 85 °C | -20 C | 200 V | Solder | BNC | |||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | 75 Ohms | Nickel | Bulkhead | Filter | Phosphor Bronze | Gold | Same Series | Thermoplastic | BNC to BNC | BNC Jack Female Socket | 500 | Jack to Jack | Straight | Female to Female | 1 Connector 1 Lockwasher 1 Nut | BNC Jack Female Socket | ||||||||||||
Amphenol ICC (Commercial Products) | |||||||||||||||||||||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | Crimp | 1 | 75 Ohms | Nickel | Female Socket Jack | Bulkhead - Front Side Nut | Silver | Gold | 85 °C | -20 C | 200 V | Crimp | BNC | Thermoplastic | RG-179 | |||||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | Solder | 1 | 75 Ohms | Nickel | Panel Mount Right Angle Through Hole | Zinc Die Cast | Female Socket Jack | Bulkhead - Front Side Nut | Board Lock Filter | Phosphor Bronze | Silver | Gold | 85 °C | -20 C | 200 V | Solder | BNC | Thermoplastic | ||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | Solder Cup | 1 | 75 Ohms | Nickel | Brass | Female Socket Jack | Bulkhead - Rear Side Nut | Filter | Phosphor Bronze | Silver | Gold | 85 °C | -20 C | 200 V | Solder Tag | BNC | Polytetrafluoroethylene (PTFE) | |||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | 50 Ohms | Nickel | Zinc Die Cast | Bulkhead | Filter | Phosphor Bronze | Gold | 85 °C | -20 C | Same Series | BNC to BNC | BNC Jack Female Socket | Jack to Jack | Straight | Female to Female | 1 Connector 1 Lockwasher 1 Nut | BNC Jack Female Socket | |||||||||||
Amphenol ICC (Commercial Products) | Bayonet Lock | Solder | 1 | 50 Ohms | Nickel | Panel Mount Right Angle Through Hole | Zinc Die Cast | Female Socket Jack | Bulkhead - Front Side Nut | Phosphor Bronze | Silver | Gold | 85 °C | -20 C | 200 V | Solder | BNC | Polyester | 500 | ||||||||||
