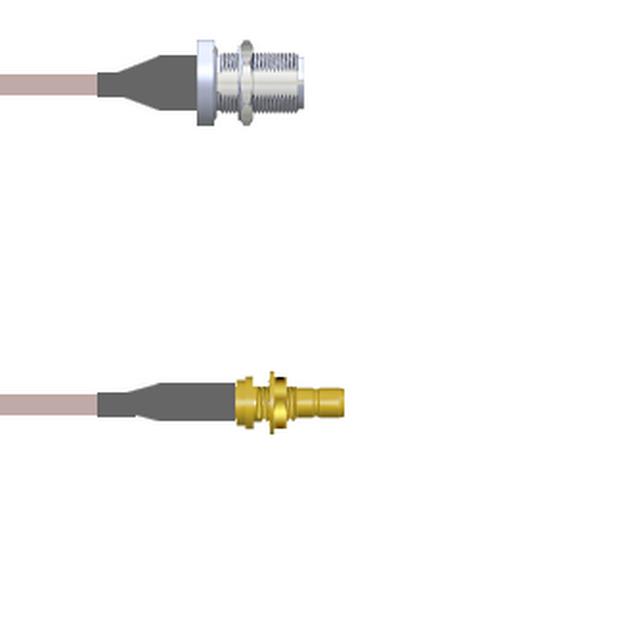

Q-1U03M00052.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JCK-JCK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03M00052.5M

1st Connector	SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1U03M0 Series

Part	Frequency - Max [Max]	1st Connector Mounting Type	Color	2nd Connector Mounting Feature	Overall Impedance	Features	Cable Type	Length	Length	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Feature	Style	2nd Contact Gender	1st Contact Gender	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U03M0003006i	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	152.4 mm	6 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack
Amphenol Custom Cable Q-1U03M00052.5M	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-316	2.5 m	98.4 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	8.2 '
Amphenol Custom Cable Q-1U03M0003012i	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	304.8 mm	12 "	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack
Amphenol Custom Cable Q-1U03M0003009i	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	228.6 mm	9 "	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack
Amphenol Custom Cable Q-1U03M0005018i	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-316			Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U03M00032.5M	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	2.5 m	98.4 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	8.2 '
Amphenol Custom Cable Q-1U03M0003002M	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	2 m	78.7 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	6.6 ft
Amphenol Custom Cable Q-1U03M0005001M	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-316	1 m	39.4 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	3.3 ft
Amphenol Custom Cable Q-1U03M0005084i	4 GHz	Panel Mount	Copper	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-316	2.1 m	84 in	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	7 ft
Amphenol Custom Cable Q-1U03M0003060i	4 GHz	Panel Mount	Black	Bulkhead - Front Side Nut	50 Ohms	Shielded	RG-174	1.5 m	5 '	Panel Mount	SMB Jack	Bulkhead - Front Side Nut	SMB to N-Type	Female	Male	N-Type Jack	5 ft
