1241152-5
ActiveTE Connectivity AMP Connectors

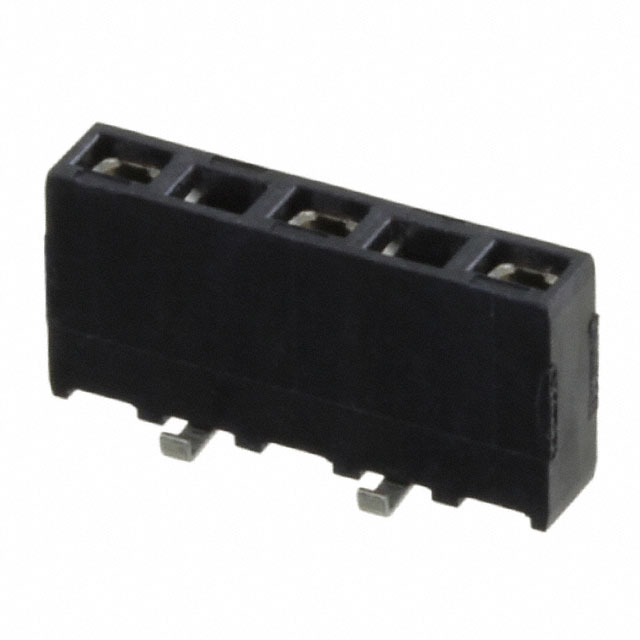

CONN RCPT 5POS 0.1 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241152-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS 0.1 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241152-5 | 1241152 Series |
|---|---|---|
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 31.5 µin | 31.5 µin |
| Contact Finish Thickness - Mating | 0.8 µm | 0.8 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Pick and Place | Pick and Place |
| Insulation Color | Black | Black |
| Insulation Height | 0.244 in | 0.244 in |
| Insulation Height | 6.2 mm | 6.2 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | - | 6 - 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.84 | |||
| 100 | $ 1.67 | |||
| Digi-Reel® | 1 | $ 2.07 | ||
| 10 | $ 1.84 | |||
| 100 | $ 1.67 | |||
| Tape & Reel (TR) | 700 | $ 1.51 | ||
| 1400 | $ 1.35 | |||
| 3500 | $ 1.25 | |||
| 7000 | $ 1.19 | |||
1241152 Series
CONN RCPT 12POS 0.1 GOLD SMD
| Part | Insulation Height | Insulation Height | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Material | Features | Connector Type | Number of Positions | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Insulation Material | Number of Rows | Contact Shape | Termination | Contact Finish - Post | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1241152-2 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 12 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
TE Connectivity AMP Connectors 1241152-5 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket | |
TE Connectivity AMP Connectors 1-1241152-0 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 10 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
TE Connectivity AMP Connectors 1241152-3 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket | |
TE Connectivity AMP Connectors 1241152-8 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 8 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
TE Connectivity AMP Connectors 1241152-9 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 9 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
TE Connectivity AMP Connectors 1241152-7 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 7 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
TE Connectivity AMP Connectors 1241152-6 | 0.244 in | 6.2 mm | Surface Mount | 0.1 in | 2.54 mm | Black | Copper Alloy | Pick and Place | Receptacle, Bottom or Top Entry | 6 | Gold | 31.5 µin | 0.8 µm | All | 2.54 µm | 100 µin | Push-Pull | Liquid Crystal Polymer (LCP) | 1 | Square | Solder | Tin | Female Socket |
Description
General part information
1241152 Series
5 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
