M3EEK-2036J

Active

IDC CABLE - MCE20K/MC20G/MCE20K

Search across all available documentation for this part.

Active

IDC CABLE - MCE20K/MC20G/MCE20K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

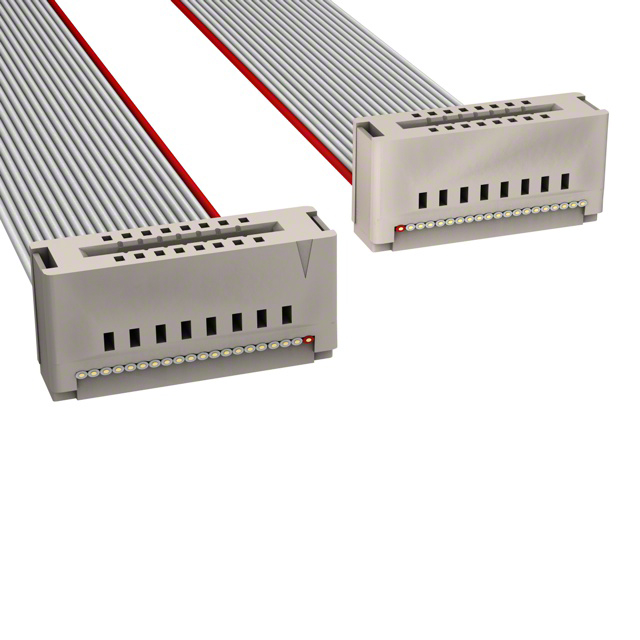

20 Position Cable Assembly Rectangular Card Edge to Card Edge 3.00' (914.40mm)

Technical documentation and resources

Part	Length [x]	Length [x]	Cable Termination	Connector Type	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Number of Positions	Color	Length	Length	Length
3M M3EEK-1036J	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10
3M M3EEK-6418J	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	64
3M M3EEK-1036R	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon
3M M3EEK-1018R	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon
3M M3EEK-1006R			IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon	152.4 mm	6 "	0.5 '
3M M3EEK-2036J	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	20
3M M3EEK-1018J	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10
