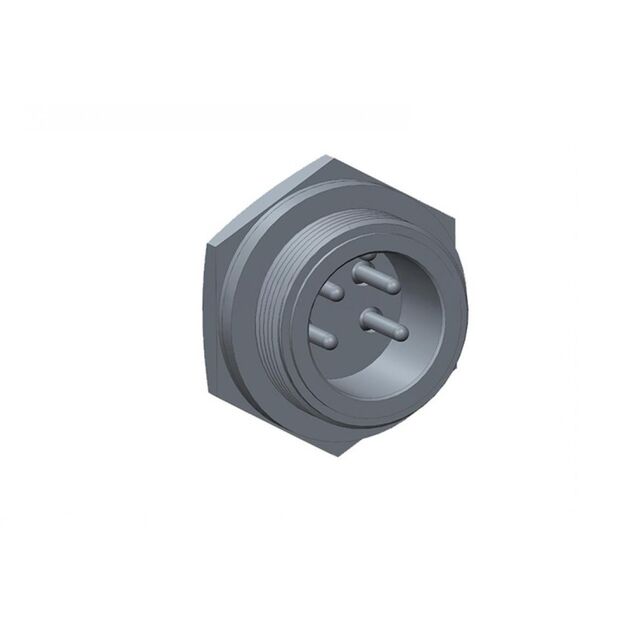

CC-03RMMS-SC7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, 20A, 03 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, 20A, 03 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	CC-03RMMS-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Contact Material	Shielding	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insert Material	Ingress Protection	Current Rating (Amps)	Contact Finish - Mating	Orientation	Color	Shell Size - Insert	Connector Type	Voltage Rating	Primary Material	Fastening Type
Amphenol LTW CC-03RMMS-SC7001	Copper Alloy	Unshielded	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Bulkhead - Rear Side Nut	Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof	20 A	Gold	Keyed	Black	C	Male Pins Receptacle	250 VDC	Plastic
Amphenol LTW CC-03RMMS-QC800P	Copper Alloy	Unshielded		-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	IP68 - Dust Tight Waterproof	20 A	Gold	Keyed	Black	C	Male Pins Receptacle	300 VDC	Plastic	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
