AS1363-ST-33_EK_ST

Obsolete

ams-OSRAM USA INC.

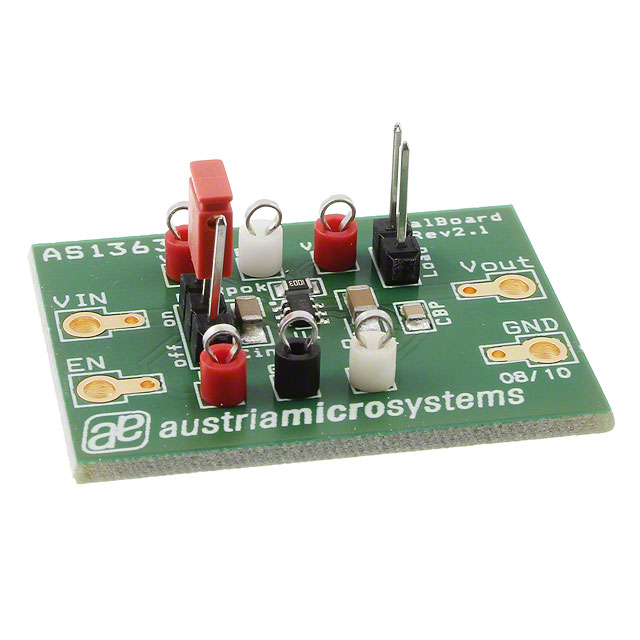

EVAL BOARD FOR AS1363

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EVAL BOARD FOR AS1363

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS1363-ST-33_EK_ST	AS1363 Series

Board Type	Fully Populated	Fully Populated
Channels per IC	1 - Single	1 - Single
Contents	Board(s)	Board(s)
Control Features	-	Enable, Power Good
Current - Output	500 mA	500 mA
Current - Quiescent (Iq)	-	150 çA
Current - Supply (Max)	-	200 µA
Mounting Type	-	Surface Mount
Number of Regulators	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Configuration	-	Positive
Output Type	-	1.81 mOhm
Package / Case	-	SOT-23-6
Protection Features	-	Over Current, Over Temperature
Regulator Type	Positive Fixed	Positive Fixed
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	SOT-23-6
Utilized IC / Part	AS1363	AS1363
Voltage - Input (Max)	-	5.5 V
Voltage - Output	3.3 V	3.3 - 4.5 V
Voltage - Output (Min/Fixed)	-	1.8 V

EVAL BOARD FOR AS1363

Part	Utilized IC / Part	Channels per IC	Voltage - Output	Current - Output	Supplied Contents	Regulator Type	Board Type	Contents	Protection Features	Package / Case	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Current - Quiescent (Iq)	Number of Regulators	Current - Supply (Max) [Max]	Supplier Device Package	Output Configuration	Voltage - Output (Min/Fixed)
ams-OSRAM USA INC. AS1363-ST-33_EK_ST	AS1363	1 - Single	3.3 V	500 mA	Board(s)	Positive Fixed	Fully Populated	Board(s)
ams-OSRAM USA INC. AS1363-BSTT-18				500 mA					Over Current, Over Temperature	SOT-23-6	5.5 V	Enable, Power Good	85 °C	-40 °C	1.81 mOhm	Surface Mount	150 çA	1	200 µA	SOT-23-6	Positive	1.8 V
ams-OSRAM USA INC. AS1363-ST-45_EK_ST	AS1363	1 - Single	4.5 V	500 mA	Board(s)	Positive Fixed	Fully Populated	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.27

General part information

AS1363 - 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board

Technical documentation and resources

No documents available
