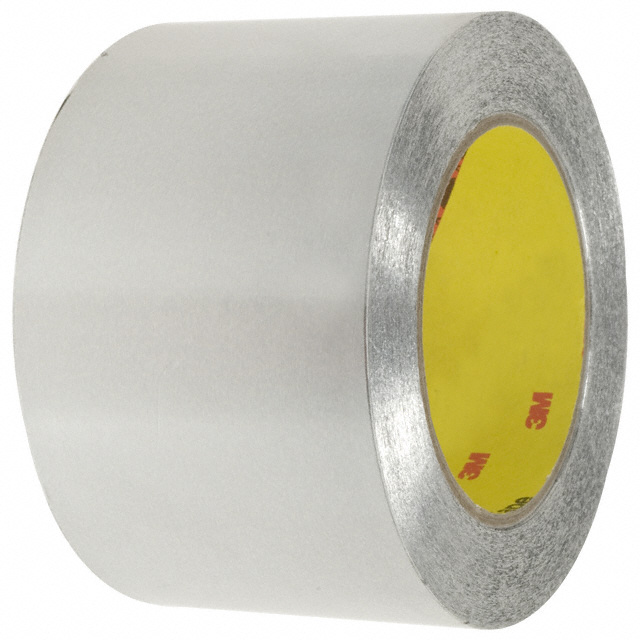

425-3"X60YD-BULK

Active

3M (TC)

TAPE ALUM FOIL SILVER 3"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

425-3"X60YD-BULK

Active

3M (TC)

TAPE ALUM FOIL SILVER 3"X60YDS

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	425-3"X60YD-BULK

Adhesive	Acrylic
Backing, Carrier	Dead Soft, Aluminum
Color	Silver
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Temperature Range [Max]	300 °F
Temperature Range [Max]	149 °C
Temperature Range [Min]	-54 °C
Temperature Range [Min]	-65 °F
Thickness	4.6 mils
Thickness	0.117 mm
Thickness	0.0046 "
Thickness - Backing, Carrier	0.0028 "
Thickness - Backing, Carrier	0.071 mm
Thickness - Backing, Carrier	2.8 mils
Usage	Heat Dissipation, Reflection
Width [x]	76.2 mm
Width [x]	3 in

425 Series

...

Part	Thickness	Thickness	Thickness	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Tape Type	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width	Width [diameter]	Color	Shelf Life	Backing, Carrier	Usage	Width	Width	Length	Length	Length	Width [y]	Width [y]	Width [x]	Width [x]
3M (TC) 3M 425 CIRCLE-3.750"-100	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	3.75 inches		Silver	24 Months	Aluminum Dead Soft
3M (TC) 425-3/4"X60YD-BULK	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	0.75 in		Silver	24 Months	Aluminum Dead Soft	Heat Dissipation Reflection	0.75 in	19.05 mm	60 yds	55 m	180 ft
3M (TC) 3M 425 0.47" X 60YD	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F			Silver	24 Months	Aluminum Dead Soft				60 yds	55 m	180 ft	0.47 in	11.94 mm
3M (TC) 3M 425 0.75" X 10"-100	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	0.75 in		Silver	24 Months	Aluminum Dead Soft		0.75 in	19.05 mm		254 mm	10 in
3M (TC) 3M 425 0.438" X 60YD	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	11.13 mm		Silver	24 Months	Aluminum Dead Soft		0.44 in	0.4375 in	60 yds	55 m	180 ft
3M (TC) 9-5-425	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F			Silver	24 Months	Aluminum Dead Soft				5 yd	4.6 m	15 ft			9 in	228.6 mm
3M (TC) 3M 425 3.78" X 60YD	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F			Silver	24 Months	Aluminum Dead Soft				60 yds	55 m	180 ft			3.78 "	96 mm
3M (TC) 3M 425 CIRCLE-1.625"-250	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	41.28 mm		Silver	24 Months	Aluminum Dead Soft		1.63 in
3M (TC) 425-3"X60YD-BULK	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F			Silver	24 Months	Aluminum Dead Soft	Heat Dissipation Reflection			60 yds	55 m	180 ft			3 in	76.2 mm
3M (TC) 3M 425 CIRCLE-0.625"-2000	4.6 mils	0.117 mm	0.0046 "	300 °F	-54 °C	-65 °F	149 °C	Aluminum Foil	Date of Manufacture	0.0028 "	0.071 mm	2.8 mils	Acrylic	16 °C 60 °F	27 °C 80 °F	0.63 in 16 mm	0.625 in	Silver	24 Months	Aluminum Dead Soft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 132.91
		12	$ 124.61
		36	$ 116.30
		60	$ 110.48

Description

General part information

425 Series

Aluminum Foil Tape Acrylic Adhesive Silver 3.00" (76.20mm) X 180' (55.0m) 60 yds
