305-036-556-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

305-036-556-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-036-556-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

305-036 Series

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Mounting Type	Material - Insulation	Read Out	Gender	Contact Type	Number of Positions/Bay/Row [custom]	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 305-036-520-203	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Panel Mount Through Hole	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 305-036-500-507	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold		Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder Eyelet(s)	2		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 305-036-500-208	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold		Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder Eyelet(s)	2		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-036-555-501	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Board Edge Straddle Mount	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2				Card Extender
EDAC Inc. 305-036-556-207	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Board Edge Straddle Mount	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2		Flush Mount M3 Threaded Insert Top Opening		Card Extender
EDAC Inc. 305-036-521-502	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Panel Mount Through Hole	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 305-036-521-204	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Panel Mount Through Hole	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 305-036-520-503	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Panel Mount Through Hole	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 305-036-556-204	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Board Edge Straddle Mount	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Card Extender
EDAC Inc. 305-036-521-258	2	-40 °C	105 ░C	Green	0.156 in	3.96 mm	36	Gold	Panel Mount Through Hole	Polyester Thermoplastic	Dual	Female	Semi Bellows	18	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	2		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.06

Description

General part information

305-036 Series

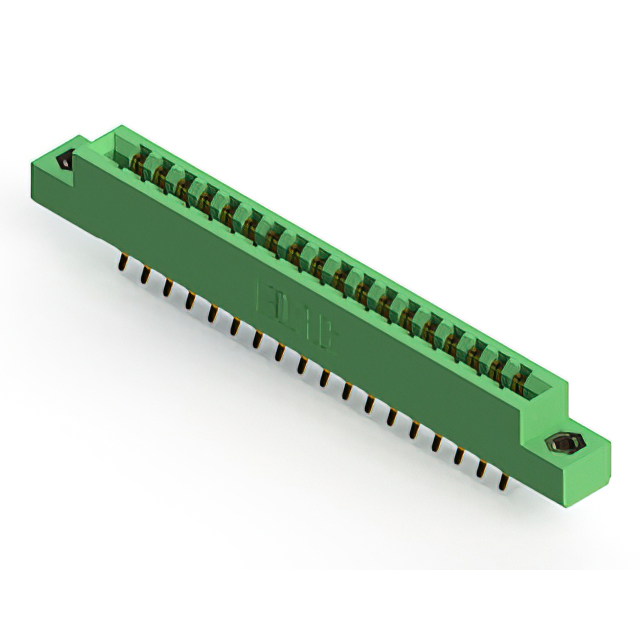

36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
