D16EES12MRED

Active

E-Switch

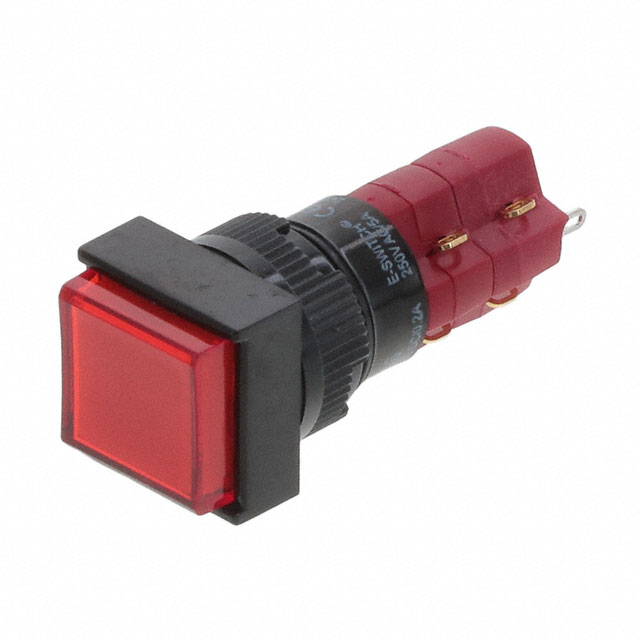

SWITCH PUSHBUTTON DPDT 8A 125V

Deep-Dive with AI

Search across all available documentation for this part.

D16EES12MRED

Active

E-Switch

SWITCH PUSHBUTTON DPDT 8A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D16EES12MRED

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	8 A, 6 A
Electrical Life	50000 Cycles
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	6 VAC/DC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

D16EES12 Series

Part	Color - Actuator/Cap	Illumination Voltage (Nominal)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Switch Function	Illumination Type, Color	Mechanical Life	Current Rating (Amps)	Termination Style	Actuator Marking	Actuator Type	Electrical Life	Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type
E-Switch D16EES12MRED	Red	6 VAC/DC	125 V	16 mm	On-On	Incandescent Red	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12BGRN	Green		125 V	16 mm	On-On	Green Incandescent	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12NRED	Red		125 V	16 mm	On-On	Incandescent Red	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12CWHT	White	28 VAC/DC	125 V	16 mm	On-On	Incandescent White	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12FGRNWHT	White		125 V	16 mm	On-On	Green Neon	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12HREDRED	Red	6 V	125 V	16 mm	On-On	LED Red	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12KYELYEL	Yellow	24 V	125 V	16 mm	On-On	LED Yellow	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front
E-Switch D16EES12HYELYEL	Yellow	6 V	125 V	16 mm	On-On	LED Yellow	100000 Cycles	6 A 8 A	Solder Lug	No Marking	Button Square	50000 Cycles	Illuminated Standard	24 V	55 °C	-20 C	DPDT	Panel Mount Front

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.13
		10	$ 23.41
		25	$ 22.07
		50	$ 21.10
		100	$ 20.18
		250	$ 19.02
		500	$ 18.18

Description

General part information

D16EES12 Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
