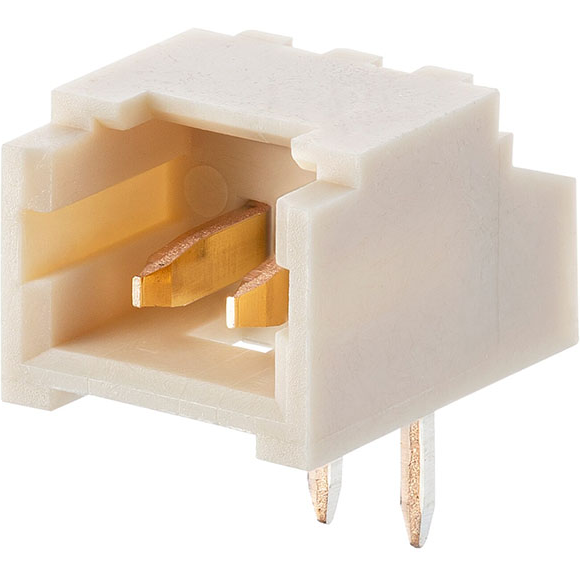

Specification	0530480760

Applications	Medical, General Purpose, Industrial, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	39.4 µin
Contact Length - Post	0.091 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.138 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	125 V

053048 Series

Part	Shrouding	Style	Termination	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Height	Contact Material	Insulation Color	Mounting Type	Pitch - Mating	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Fastening Type	Connector Type	Contact Type	Current Rating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Number of Positions Loaded	Contact Shape	Insulation Material	Applications	Contact Finish Thickness - Post
Molex 0530480460	Shrouded - 4 Wall	Board Cable/Wire	Solder	4	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480860	Shrouded - 4 Wall	Board Cable/Wire	Solder	8	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480210	Shrouded - 4 Wall	Board Cable/Wire	Solder	2	Tin		0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Tin	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	85 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480760	Shrouded - 4 Wall	Board Cable/Wire	Solder	7	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530481560	Shrouded - 4 Wall	Board Cable/Wire	Solder	15	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530481210	Shrouded - 4 Wall	Board Cable/Wire	Solder	12	Tin		0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Tin	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	85 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530481460	Shrouded - 4 Wall	Board Cable/Wire	Solder	10 14	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480660	Shrouded - 4 Wall	Board Cable/Wire	Solder	6	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480560	Shrouded - 4 Wall	Board Cable/Wire	Solder	5	Tin	Flash	0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Gold	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	105 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
Molex 0530480710	Shrouded - 4 Wall	Board Cable/Wire	Solder	7	Tin		0.138 in	Phosphor Bronze	Natural	Right Angle Through Hole	0.049 in	UL94 V-0	1	Tin	Detent Lock	Header	Male Blade	Varies by Wire Gauge	125 V	-40 °C	85 °C	0.091 in	All	Rectangular	Nylon Polyamide (PA)	Automotive General Purpose Industrial Medical	39.4 µin
